Stamping Components HVAC Stainless Steel Uct Volume Iris Damper SGS Certification
Stamping Components HVAC Stainless Steel Uct Volume Iris Damper SGS Certification
Specifications
Brand Name :
JH
Model Number :
JH
Certification :
SGS, ISO 9001, CE
Place of Origin :
Zhejiang, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5000 PCS/Day
Delivery Time :
30-35 days
Packaging Details :
Carton Case + Pallet
Material :
galvanized steel or stainless steel 316L
Usage :
Iris damper for air volume control of circular duct
Gasket :
double lips EPDM rubber
Available sizes :
80mm to 800mm
Plastic part :
available in orange and yellow color
Sample :
Offer
Description



Stamping Components HVAC Stainless Steel Uct Volume Iris Damper SGS Certification


Product Description

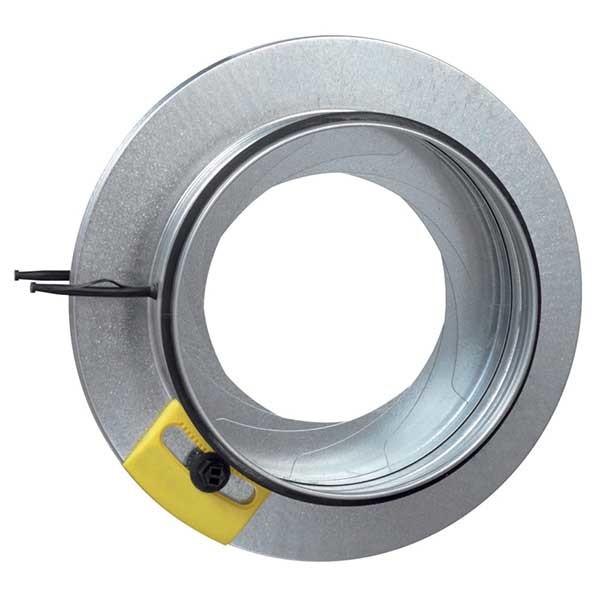

The body and valve of the iris damper are made of galvanized steel DX53 D+ Z275 or stainless steel 316L.
The seal ring has double lips made of EPDM rubber. Iris damper typically has a plastic regulator nut and a
plastic key.
The class of air tightness is a C class according to the EN1751:2014 and the color of the plastic quadrant
comes available in orange and yellow.


Application of the Iris Damper


Iris dampers are typically used for controlling the air volume and measuring the circular duct in ventilation
and air conditioning systems. The diaphragm valve ensures a perfect accordance between a diameter
indication on the handle and an opening of a valve. A fully opened iris damper provides a 100% free area
with no control mechanism in the airstream, thus allowing easy and effective cleaning of the duct work system.


Product detail Images



Stamping Components HVAC Stainless Steel Uct Volume Iris Damper SGS Certification


Product Specification

Item code d(mm) D(mm) L(mm) A(mm)
ID 080 79 125 115 33
ID 100 99 165 115 27
ID 125 124 188 115 27
ID 150 149 230 115 27
ID 160 159 230 115 27
ID 200 199 285 120 27
ID 250 249 335 135 33
ID 300 299 405 140 33
ID 315 314 405 140 33
ID 400 398 525 150 46
ID 500 498 655 150 46
ID 630 628 815 155 46
ID 800 798 1015 285 110



Why choose us?


Advantages:

  • Non-standard/standard/OEM/ODM/customized service provided
  • High precision, tolerance can reach ±0.002mm
  • No MOQ, no quantity limited
  • Fast lead time
  • Can meet DIN,JIS,ASTM,AISI,BS,GB standard

Feature:

  • Precision stamping parts
  • High strength
  • Anti-corrosion
  • Environmental protection
  • Heavy-duty
