Specifications
Brand Name :
JIALIFT
Model Number :
SL20GHS
Certification :
CE，UL
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
200 units per day
Delivery Time :
3 days
Packaging Details :
Pallet or container
Load Capacity :
2000kg
Battery :
Lead acid/Li-lon
Drive motor power :
0.75kw
Lifting motor power :
0.8kw
Battery voltage/rated capacity :
2×12/100V/Ah
Battery weight (±5%) :
54
Drive control type :
AC
Noise level :
≤70(dB(A))
Steering type :
Mechanical steering
Description

Electric pallet truck(Pedestrian) SL20GHS Rated traction weight 2000kg Lifting height 200mm Electric Pallet Haul

Electric Pallet Truck SL20GH&SL20GHS.pdf

Electric pallet truck(Pedestrian) Rated traction weight 2000kg Lifting height 200mm Electric Pallet Haul

Product Features

1.The vehicle is simple, agile, stable and easy tooperate.Compact structure, small turning radius.Low noise, high performance.

2.The auxiliary wheels on both sides increase thedriving stability and are standard equipped withthe function of lifting power limit. When the forksrise to the top, the system will automatically cut offthe lifting power and stop the car smoothly.

3.The operation handle is lengthened design forwalking vehicle, which conforms to ergonomicprinciple and is comfortable to operate.

4.The front panel of the body box is equipped withopening device, which can quickly check thefaults of the oil cylinder and oil pipe.

Characteristics

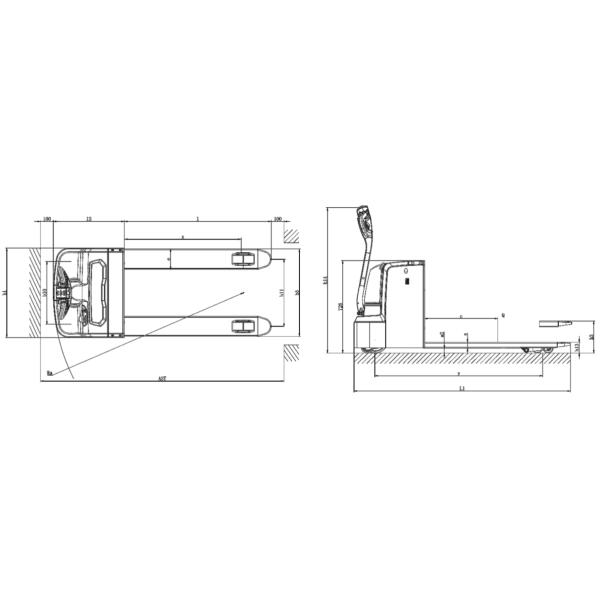

Model SL20GHS
Power unit Electric
Operation Pedestrian
Rated traction weight Q(kg) 2000
Load centre c(mm) 600
Axle centre to fork face x(mm) 931
Wheel base y(mm) 1324
Service weight with battery kg 333
Wheels/Tyres
Wheels type PU
Driving wheel size Φ×w(mm) Φ210×70
Bearing wheel size Φ×w(mm) Φ80×70
Additional wheels(dimensions) Φ×w(mm) Φ100×40
Wheels,number front/rear (x =driven) 1x+2/4
Track width b11(mm) 380/525
Dimensions
Lift h3(mm) 200
Overall height(With handle) h14(mm) 730/1165
Fork Height,Lowered h13(mm) 85
Overall length l1(mm) 1708
Length to fork face l2 (mm) 558
Overall width b1/b2(mm) 700
Fork dimensions s/e/l (mm) 50/160/1150
Width of forks b5(mm) 540/685
Min.Ground clearance m2(mm) 35
Aisle width with pallet 1000x1200 across forks Ast (mm) 1909
Aisle width with pallet 800x 1200 along forks Ast (mm) 1959
Min.Turning radius Wa(mm) 1490
Performance
Travel speed,laden/unladen (km/h) 5.2/5.5
Lifting speed,with/without load (mm/s) 20/26
Lowering speed,with/without load (mm/s) 33/21
Maximum climbing ability,with/without load (%) 8/15
Service brake Electromagnetic
Drive
Drive motor,60 minute rating (kW) 0.75
Lift motor rating at S3 15% (kW) 0.8
Battery voltage/rated capacity (V/Ah) 2×12/100
Battery weight (±5%) (kg) 54
Other
Type of drive control AC
Noise level at operator's ear (dB(A)) ≤70
Type of steering Mechanical
