Specifications
Brand Name :
JIALIFT
Model Number :
SL20GE
Certification :
CE，UL
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
200 units per day
Delivery Time :
3 days
Packaging Details :
Pallet or container
Load Capacity :
2000kg
Battery :
Lead acid/Li-lon
Drive motor power :
1.3kw
Lifting motor power :
0.8kw
Battery voltage/rated capacity :
24/210V/Ah
Battery weight (±5%) :
190kg
Drive control type :
AC
Noise level :
≤70(dB(A))
Steering type :
Mechanical steering
Description

Electric pallet truck(Pedestrian) SL20GE Rated traction weight 2000kg Lifting height 200mm Electric

Electric Pallet Truck SL20GE.pdf

Electric pallet truck(Pedestrian) Rated traction weight 2000kg Lifting height 200mm


Product Features
1.Imported AC controller ,Germany ZF verticalgearbox;
2.Strong effective AC drive systems offer superioracceleration performance,improve job efficiency,and save energy;
3.Unique long handle operation,easy and flexible;
4.The balance wheel on both sides ensures higherstability of the vehicle and prevents the groundfrom being damaged;
5.The battery case cover and mask providegrooves,placed tools,water cups and other items,more human.

Characteristics
Model SL20GE
Power unit Electric
Operation Pedestrian
Rated traction weight Q(kg) 2000
Load centre c(mm) 600
Axle centre to fork face x(mm) 962
Wheel base y(mm) 1388
Service weight with battery kg 520
Wheels/Tyres
Wheels type PU
Driving wheel size Φ×w(mm) Φ230×75
Bearing wheel size Φ×w(mm) Φ80×70
additional wheels(dimensions) Φ×w(mm) Φ100×40
Wheels,number front/rear (x =driven) 1x+2/4
Track width b11(mm) 390/525

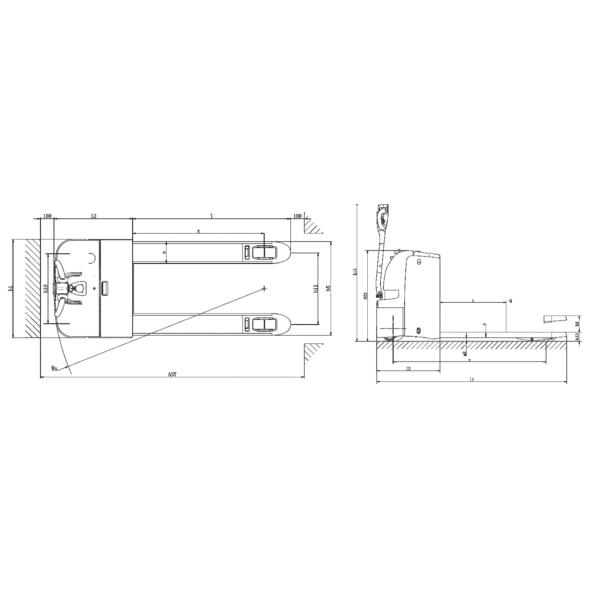

Dimensions
Lift h3(mm) 200
Overall height(With handle) h14(mm) 825/1278
Minimum height of cargo fork h13(mm) 85
Overall length l1(mm) 1742
Length to fork face l2(mm) 592
Overall width b1/b2(mm) 700
Fork dimensions s/e/l(mm) 50/160/1150
Width of forks b5(mm) 550/685
Min.Ground clearance m2(mm) 35
Aisle width with pallet 1000x1200 across forks Ast(mm) 1944
Aisle width with pallet 800 x1200 along forks Ast(mm) 1994
Min.Turning radius Wa(mm) 1556
Performance
Travel speed,laden/unladen (km/h) 4.2/4.5
Lifting speed,with/without load (mm/s) 21/27
Lowering speed,with/without load (mm/s) 38/38
Maximum climbing ability,with/without load (%) 8/15
Service brake Electromagnetic
Drive
Drive motor,60 minute rating (kW) 1.3
Lift motor rating at S3 15% (kW) 0.8
Battery voltage/rated capacity (V/Ah) 24/210
Battery weight (±5%) (kg) 190
Other
Type of drive control AC
Noise level at operator 's ear (dB(A)) ≤70
Type of steering Mechanical
