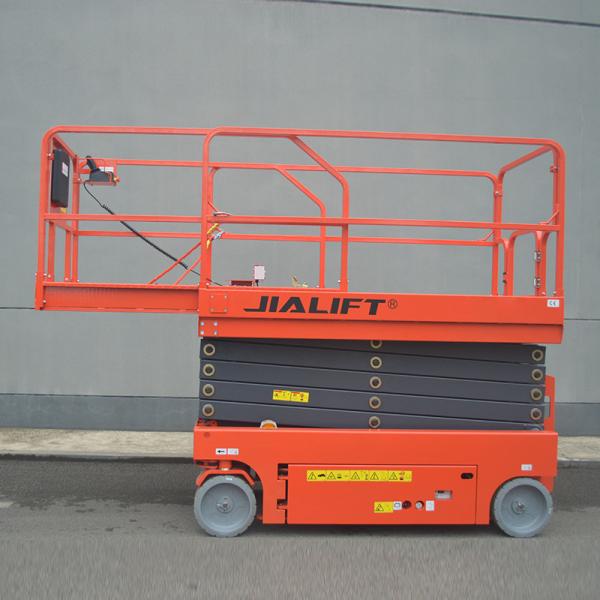

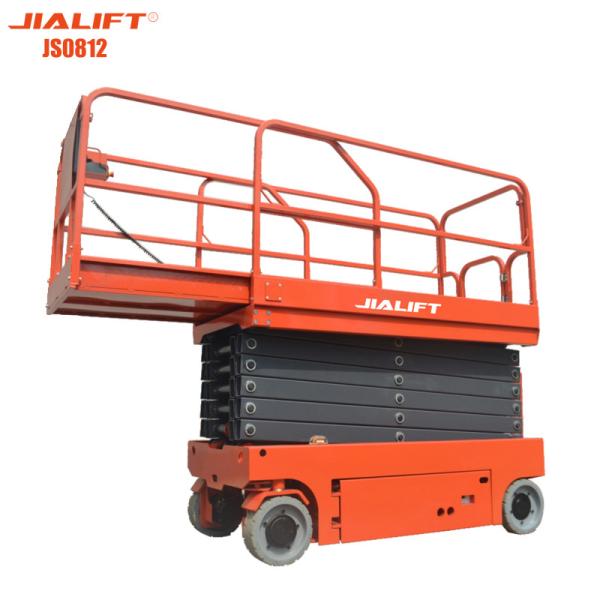

Self Propelled Aerial Work Platform 10m Rated Capacity 450kg Aerial Work Equipment
Self Propelled Aerial Work Platform 10m Rated Capacity 450kg Aerial Work Equipment
Self Propelled Aerial Work Platform 10m Rated Capacity 450kg Aerial Work Equipment
Self Propelled Aerial Work Platform 10m Rated Capacity 450kg Aerial Work Equipment
Self Propelled Aerial Work Platform 10m Rated Capacity 450kg Aerial Work Equipment
Self Propelled Aerial Work Platform 10m Rated Capacity 450kg Aerial Work Equipment
Self Propelled Aerial Work Platform 10m Rated Capacity 450kg Aerial Work Equipment
Self Propelled Aerial Work Platform 10m Rated Capacity 450kg Aerial Work Equipment
Specifications
Brand Name :
JIALIFT
Model Number :
JS0812
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Supply Ability :
200 units per day
Delivery Time :
3 days
Packaging Details :
Tray or container
Certification :
CE，UL
Load Capacity :
450kg
Battery :
Lead acid/Li-lon
Lifting / driving motor power :
3.3kw
Battery voltage / capacity :
6×4/180V/Ah
Charger input voltage :
100-240VAC
Charger output current :
36A
Control voltage :
24VDC
Description

Self-propelled scissor type arial work platform JS0812 Working height 10m Rated capacity 450kg Aerial work platform

Electric Aerial Work Platform JS0812&JS1012&JS1212...

Self-propelled scissor type arial work platform Max. working height 10m Rated capacity 450kg Electric Aerial work platform

Product Features

1.Zero turning radius,can realize in situ steering,can operate and work flexibly in a narrow space.

2.It has comfortable and wide non-slip working platform,and longer extended working platform.

3.Standard equipped with perfect safety sensor and alarm system,strobe light,anti -clamp alarm,low voltage alarm.

4.New electric proportional control system,with automatic fault diagnosis,fault code display and alarm system,more stable and more stable.

5.The boom and key components are selected for high-strength steel and electrophoresis treatment,which improves the anti-corrosion performance by more than three times and breaks through 100,000 fatigue tests.

6.More reliable active pothole protection system improves vehicle safety and passability.

7.Parts universal,modular design,and both sides of the whole rotary tray,maintenance is more convenient.

8.Emergency descent system,manual release brake system and safety support arm make maintenance more simple and efficient.

Characteristics
Model JS0812
Dimensions
Max. working height m 10
Max. platform height m 8
Overall length m 2.4
Overall width m 1.15
Overall height( guardrail unfolded) 2.3
Overall height ( guardrail folded) m 1.71
Platform size(length x width) m 2.25×1.15
Guardrail height m 1.1
Extension size of platform m 1
Ground clearance (retracted state) mm 95
Ground clearance (lifting state) mm 20
Wheelbase m 1.85
Performance
Max. number of workers (indoor/ outdoor) 2/1
Rated capacity kg 450
Rated capacity of extension platform kg 120
Drive speed (retracted state) km/h 0~3.2
Drive speed (lifting state) km/h 0~0.8
Min. turning radius (inside) m 0
Min. turning radius (outside) m 2.2
Lifting/Falling time s 32/35
Max. allowable tilt angle (forward and backward /left an d right) ° 3°/1.5°
Max. allowable wind speed (indoor /outdoor) m/s 0/12.5
Max. allowable lateral force (indoor / outdoor) N 400/200
Gradeability % 30%
Control type Proportional control
Drive Dual front wheels
Brake Dualrear wheels
Tyre size mm 381×129
Drive
Lifting / driving motor power kw 3.3
Battery voltage / capacity V/Ah 6×4/180
Charger input voltage VAC 100-240
Charger output current A 36
Control voltage VDC 24
Other
Overall weight kg 2460
