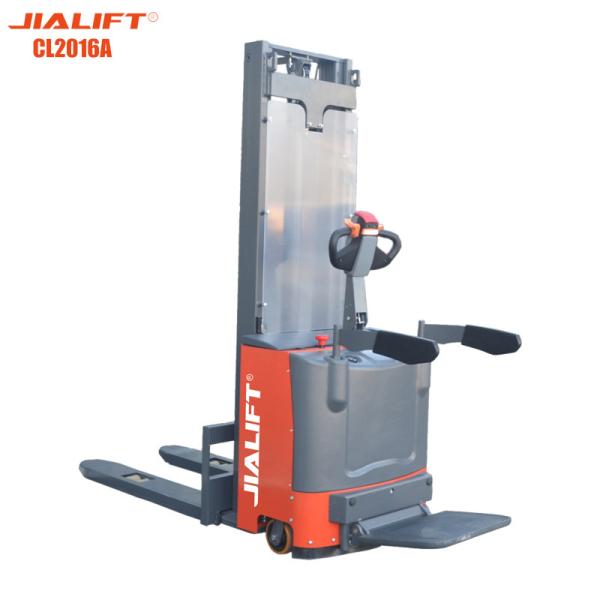

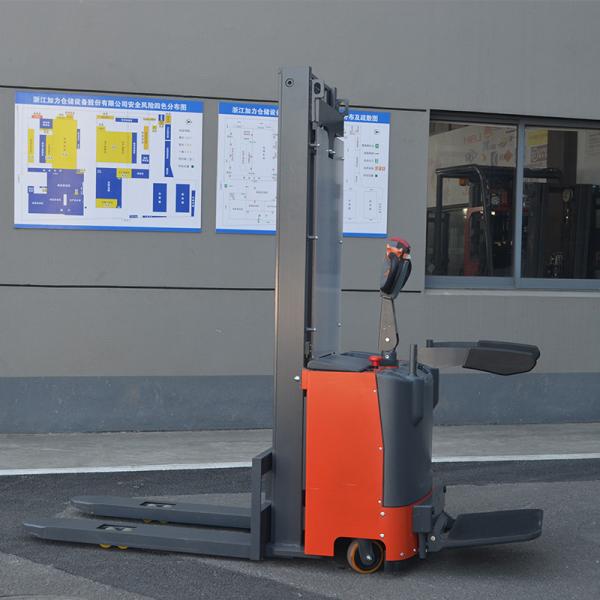

Standing On Electric Stacker 2000kg Lifting Height 1600mm Battery Powered Stacker
Standing On Electric Stacker 2000kg Lifting Height 1600mm Battery Powered Stacker
Standing On Electric Stacker 2000kg Lifting Height 1600mm Battery Powered Stacker
Standing On Electric Stacker 2000kg Lifting Height 1600mm Battery Powered Stacker
Standing On Electric Stacker 2000kg Lifting Height 1600mm Battery Powered Stacker
Standing On Electric Stacker 2000kg Lifting Height 1600mm Battery Powered Stacker
Standing On Electric Stacker 2000kg Lifting Height 1600mm Battery Powered Stacker
Standing On Electric Stacker 2000kg Lifting Height 1600mm Battery Powered Stacker
Specifications
Brand Name :
JIALIFT
Model Number :
CL2016A
Certification :
CE，UL
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Supply Ability :
200 units per day
Delivery Time :
3 days
Packaging Details :
Pallet or container
Load Capacity :
2000kg
Battery :
Lead acid/Li-lon
Drive motor,60 minute rating :
1.5kw
Lift motor rating at S3 15% :
3.0kw
Battery voltage/rated capacity :
24/210 V/Ah
Battery weight(±5%) :
190kg
Noise level at operator's ear :
≤70dB(A)
Description

Electric stacker(Standing on) CL2016A Rated traction weight 2000kg Lifting height 1600mm Electric Reach Stacker

Electric Reach Stacker CL-A.pdf

Electric stacker(Standing on) CL2016A Rated traction weight 2000kg Lifting height 1600mm Electric Reach Stacker

Product Features
1.Imported AC controller with stepless speed regulation,reverse connection braking and shortcircuit protection.
2.High performance storage batteries,cycleperformance and deep discharge recovery ability,superior battery life,long service life.
3.The main frame uses 12 #tank steel,ultra-highstrength body,ensuring the stability of the heavy-duty stacker;
4.With power off brake function,when the vehicle is outof control or on the ramp,this function is particularlypractical,more safe and reliable.
Standard lifting power limit function,when the forksrise to the top,the system will automatically cut offthe power supply,stable parking.
5.The controller has self-diagnosis function,the faultcode can be displayed after the hand-held unit isconnected with the controller,and the fault can bechecked quickly and accurately.

Characteristics
Model CL2016A
Power unit Electric
Operation Standing on
Rated traction weight Q(kg) 2000
Load centre c(mm) 600
Axle centre to fork face x(mm) 675
Wheel base y(mm) 1180
Service weight with battery kg 847
Wheels/Tyres
Wheels type PU
Driving wheel size Φ×w(mm) Φ250×80
Bearing wheel size Φ×w(mm) Φ80x70
additional wheels(dimensions ) Φ×w(mm) Φ150×58
Wheels,number frontrear (x=driven) 1,4/2
Track width b10(mm) 675
Track width b11(mm) 390/515
Dimensions
Free lift h1(mm) 2077
Lift h2 (mm) 0
Height of mast,extended h3(mm) 1600
Height of seat/stand-on platform h4(mm) 2077
Overall height(With handle h14(mm) 1040/1415
Lowered fork helght h13(mm 86
Overall length l1(mm) 1930
Length to fork lace l2 (mm) 770
Overall width b1/b2 (mm) 808
Fork dimensions s/e/l (mm) 60/180/1150
Width of lorks b5(mm) 570/695
Min.Ground clearance m2(mm) 26
Aisle width with pallet 1000x1200 across forks Ast(mm) 2380
Aisle width with pallet 800x 1200 along forks Ast (mm) 2360
Min.Turning radius Wa(mm) 1495
Perfomance
Travel speed,laden/unladen (km/h) 5.2/5.5
Lifting speed,with/without load (mm/s) 90/110
Lowering speed,with/without load (mm/s) 150/140
Maximum climbing ability,withrwithout load (%) 6/8
Service brake Electromagnetic
Drive
Drive motor,60 minute rating (kW) 1.5
Lilt molor rating at S3 15% (kW) 3
Battery voltage/rated capacity (V/Ah) 24/210
Battery weight (±5%) (kg) 190
Other
Type of drive control AC
Noise level at operator's ear (dB(A)) ≤70
