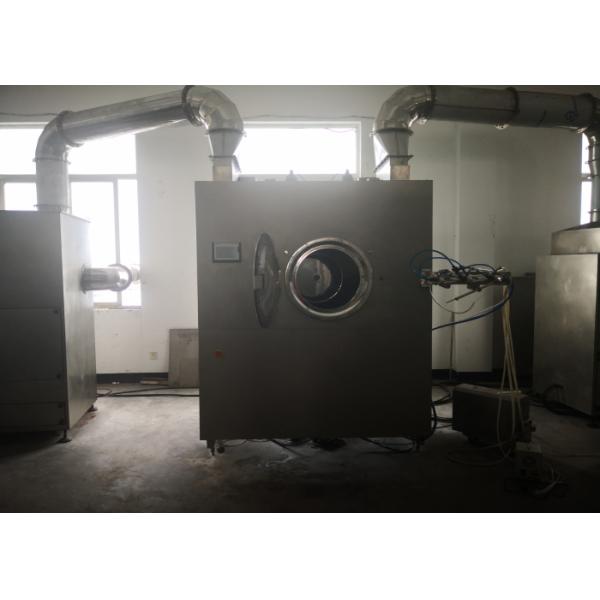

Poreless Tablet Coating Machine (BGW-80E) Efficiency Intelligent for Pharmaceutical Machinery

Main Technical Parameters:

( Notes: If any change of data, we will not notify further

Basic Working Principle:

1. The tablets make complicated and constant track movement with easy and smooth running and frequent exchanging in a clean and closed drum of the film coating machine. The coating mediums stirred in the constant temperature controlled stirring drum are sprayed on tablets through the spray gun at the inlet under the action of peristaltic pump. Meanwhile hot air up to 100, 000 level filtration are inhaled through the air distributing pipe at the center of the drum and flowed through tablets around the fan blade. Under the action of air exhaust and negative pressure, hot air are exhausted from the other side of the air distributing pipe and discharged after dust abatement. So these coating mediums on the surface of tablets get dry quickly, forming a coat of firm, fine and smooth film. Automatically controlled by PLC, it is in normal operation.

Performance and Characteristics:

1. The drum of the main machine has a closed poreless structure and is equipped with a flow-guiding sheet. Tablets can make easy and smooth rotation without fragment and chipped edge in the drum due to mirror polishing of its wall and flow-guiding sheet, which greatly improves the yield. The perforated machine has a wide application, energy and auxiliary saving and easier to clean.
2. During air intake, three level filtration involving primary filtration, medium filtration and high filtration, can reach 100, 000 level purification. During air exhaust, dust abatement can reach 99% by adopting a bag-type dust extractor.
3. A specially designed air source exchange system features exchange of hot air an cold air depending on the technological requirements, so to say, the fan propeller can be regarded as air inlet or air outlet. The propeller hole bore can meet the user's requirement from 0.6 to 3.00 mm, which is suitable for all types of tablet coating.
4. An eye detecting explosion-proof lamp is equipped in the drum so as to clearly view all material in run for the convenience of accurately control of coating technological in range.
