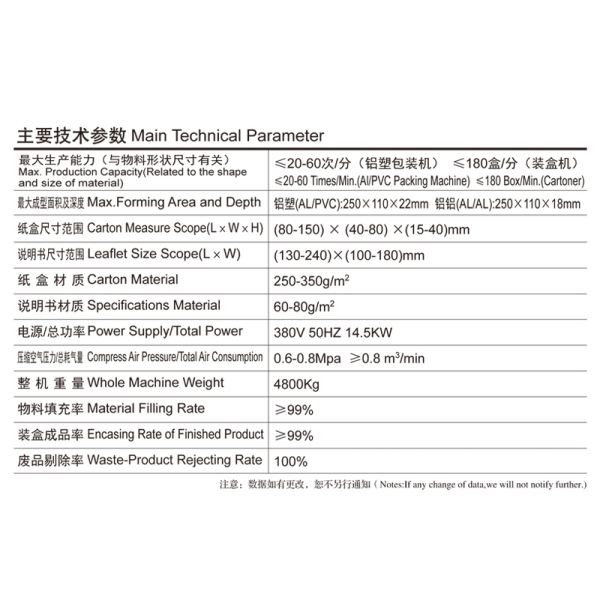

Main Technical Parameter for Carton Machine

Use:

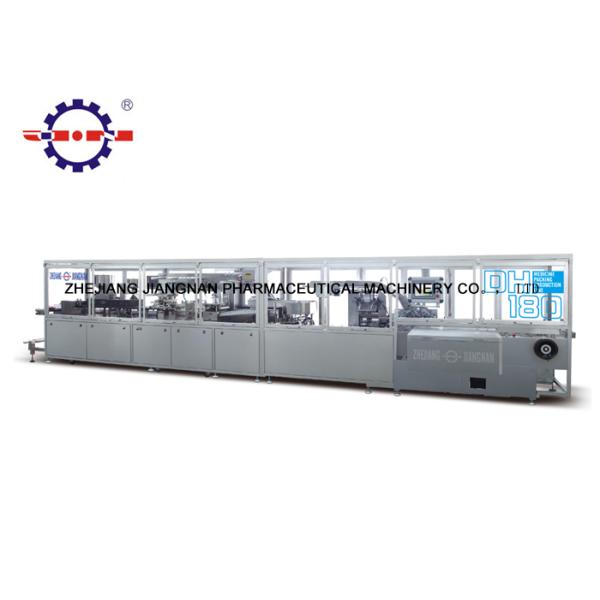

This line integrating al/pl blister,feeding,detection,rejection,cartoning and cellophane packing into whole.

This line machine is specially for al/pl & al/al blister,cartoning and cellophane packing line.

The line machine integrating al/pl blister,feeding,detection,rejection,cartoning and cellophane packing into an organic whole,which with compact structure,simple operation and PLC touch screen adopted.

Change parts can special designed by customer's requirement.

Performance and Characteristic :

1. This complete line is operated by advanced and independent PLC control system interlinked

with touch screen and alarm system, ensuring the system under normal operation and simplification in operation.

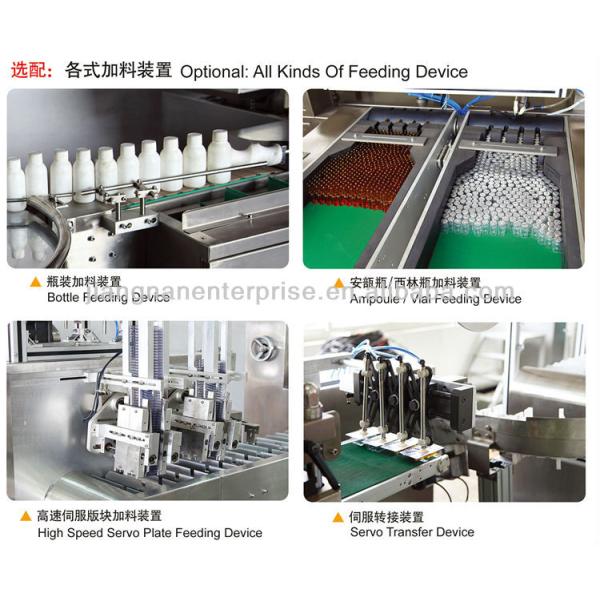

2. This full line adopts servo motor to complete such as PVC forming, auto material feeding, detecting, PTP sealing, straps recovery, punch forming, leaflet folding and cartooning together with blisters, auto straps detection and rejection. It's also suitable for being connected with following processes.

3. All operations are monitored by advanced detection system, which can ensure safety and reliability to image detection system and guarantee of products quality to maximum level.

4. The whole system can adjust its working speed automatically according to output ratio and cartons filling requirements to cater for its optimum balance.

5. All driving systems adopt synchronous and flexible connection and impact resistance, no lubrication oil is required to ensure sanitary and simple maintenance.

6. Its construction design is of both independent bodies, which makes it more convenient to move into elevator or clean room.

This machine is a high-speed flat blister packaging machine with the fastest speed manufactured by us, and its running speed can reach 150 cutting/min stably (standard version). The strongest and newest full-movement computing control system is adopted by this machine; and moreover, this machine is integrates phosgene and has coaxial station, and the station of the equipment is operated flexibly and intelligently.

This machine has three main independent stations (forming, heat-sealing, batch number & pressure and cutting ) and front-tier horizontal arrangement structure consisting of two main big frame, both of which are completed by the motion computer control system respectively.
