Wrap Around Automatic Cartoning Machine , Tube Cartoning Machine 1 Year Warranty
Wrap Around Automatic Cartoning Machine , Tube Cartoning Machine 1 Year Warranty
Specifications
Brand Name :
JIANGNAN
Model Number :
WZH-260
Certification :
CE,GMP
Place of Origin :
CHINA
MOQ :
1 UNIT
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
50 UNITS PER YEAR
Delivery Time :
40DAYS
Packaging Details :
Export-standard and sea-worthy wooden case
Name :
Automatic Cartoning Machine
Model :
WZH-260
Material :
Stainless Steel
Brand :
Jiangnan
Origin :
China
Warranty Period :
1 year
Description

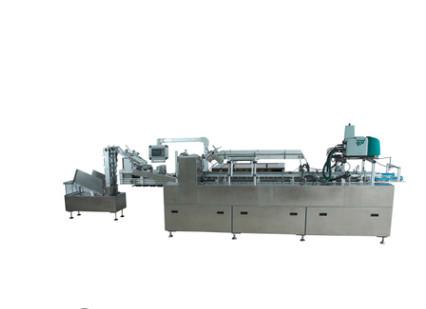

1) MULTIFUNCTIONAL AUTOMATIC CARTONER (ZH-260)

Wrap Around Automatic Cartoning Machine , Tube Cartoning Machine 1 Year Warranty

MAIN TECHNICAL PARAMETER;

Max Encasing Speed

260 ( Box/min)
Box Quality Requirement

250-350g/m

Dimension Range(L×W×H

(80-150)×(40-70)×(15-40)mm
Leaflet Quality Requirement 60-80g/㎡
Unfolded Leaflet Specification(1-4Fold) (130-240)×(100-180)mm
Air Consumption ≥0.3m3/min0.6mpa
Motor Power 2.2kw 380V 50HZ
Machine dimension(L×W×H) 4500×1600×1600mm
Machine Net Weight 1850kg

(Notes: f any change of data, we will not notify further

PERFORMANCE AND CHARACTERISTICS:

■

Continuous mechanical feeding materials and carton packing, and working of each functional part is in harmony, stable and reliable

■

When materials do not reach correct position, the pusher has an alarm and halt facility for that, in order to ensure good quality of carton packaging and safety in operation effectively

■

Constantly moving carton-opening and pulling carton-opening mechanism are more stable and reliable

■

Servo material departing and feeding mechanism is stable and reliable

■

Halt facility for air pressure and vacuum protection, when safety-cover is opened, the halt facility will be checked automatically for operating safety of the machine

■

It is easy, convenient and quick to change and adjust product size by hand wheel.

■

Variable frequency speed regulation, automatic Plc control system with touch screen easy to operate, the system run stably

■

Overload protection for principal driving, indication of failure diagnosis, automatic fault shutdown.

Main Function:

Automatic folding (1-4 folding and conveying of manual leaflet, automatic material categorizing and feeding; automatic paper carton spreading; automatic manual leaflet and material carton packaging, synchronous(3-row )batch number printing automatic paper carton sealing, automatic waste-products eliminating It can be used for al/PVC blister plates, injection tray, bottles, ointment product's automatic encasing

Product tags

wrap around cartoning machines

,

overwrap packaging machine

,

auto filling packing machine
