Specifications
Brand Name :
JIANGNAN
Model Number :
DPSW-360
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
40UNITS /PER YEARS
Delivery Time :
45 DAYS
Packaging Details :
Export-standard and sea-worthy wooden case.
Name :
Madicine Packing Line
Model :
DPSW-360
Material :
Stainless Steel
Brand :
Jiangnan
Origin :
China
Warranty Period :
1 year
Range of stroke (mm.) :
40-120
Description

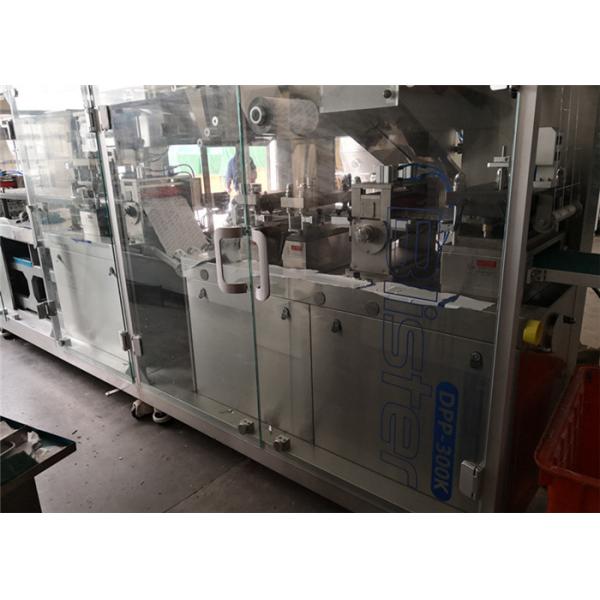

Medicine Packing Line Pharmaceutical Blister Packing and Cartoning Packing Line

Performance and characteristics

  • Visible tempering glass cover, easy to observe working status andmaintenance; machine stops when cover is open
  • Movable HMl, easy to test; multiple emergency stop buttons on whole working line
  • Whole working line controlled by servo motion control system, with memory function, no need to reset parameters when machine stop or power interruption, continuous working following last recorded position
  • Positioning mould easy to change
  • Buffer for blistering section, reducing contraction ratio of blister
  • Integrated air and water cooling station
  • Wasted edge chopping and discharging, no need machine stoppingand collecting
  • Hard connecting for upstream and downstream equipment, continuous feeding, instant setting in HMI for various blisters and wrapping package quantities
  • Two film stations for wrapping packaging, no need machine stop when changing film
  • Cutter plated with special surface layer, no material sticky to cutter.

Main Technica| Parameter

Tota| Power 380V 50Hz 25KW
Air Pump

≥0.25m3/min (Self Prepared) Pressure:06-08Mpa

Size 14800×1200×1740mm (Can be Separated)
Weight 7000KG

DPP-300K Blister Packing Machine

Punching Speed AL/PVC:150cutting/min AL/AL:60cutting/min
Max forming Area Depth

AL/PVC: 200×300×15mm

AL/Al: 200×300×12mm

Travel Scope 30-120mm

Packing Material

( Roll diaΦ75mm)

PVC (0.15-0.4)×310×600mm
Sealing Aluminum (0.02-0.15)×310×(300)mm
Forming Aluminum 0,1602)x310x(φ600m

Sealing Dialyzing Paper

50-100/mx310x(300mm

380V Pharmaceutical Packaging Machine High Efficiency Automatic Medicine Packing
