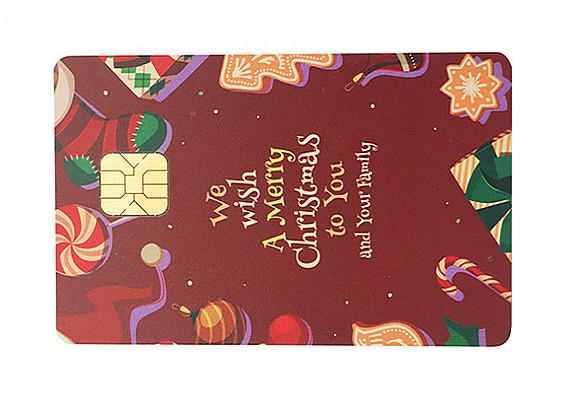

Frosted Finish Blank 1KB AT24C01 Chip Contact Card

PVC pre printed / blank 1KB contact smart card with AT24C01 chip

Description:

The Atmel AT24C01 is a contact only I2C (I-squared-C) memory smart card that provides 1K (1024 bits) of serial electrically erasable and programmable read-only memory (EEPROM). The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. Ideal for use in storing data in closed loop environments where low security is required. The card is white PVC or PET material and is standard CR80 size.

Features:

• Low-voltage and Standard-voltage Operation

2.7 (VCC = 2.7V to 5.5V)
1.8 (VCC = 1.8V to 5.5V)

• Internally Organized 128 x 8 (1K)
• Two-wire Serial Interface
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• 100 kHz (1.8V) and 400 kHz (2.7V, 5V) Compatibility
• Write Protect Pin for Hardware Data Protection
• 8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes
• Partial Page Writes Allowed
• Self-timed Write Cycle (5 ms max)
• High-reliability

Endurance: 1 Million Write Cycles
Data Retention: 100 Years

• Automotive Devices Available
• 8-lead JEDEC PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2×3), 5-lead SOT23, 8-lead TSSOP and 8-ball dBGA2 Packages
• Die Sales: Wafer Form, Waffle Pack and Bumped Wafers

Product Parameter:

Package:

To make sure cards can be delivered without any damage,we provide the most solid and the safest packaging.



Dimensions of the inner box:

Dimensions of the Outer Carton:

FAQ
Q: Are you a manufacturer or trading company?
A: We are manufacturer with a history of 16 years.

Q: Could you write my company website in the tag?
A: Yes. Tap your tag and link to your company website.

Q: Will the encoding/programming be done by ourselves or by your company?
A: The tags/cards can be blank for being encoded by you. They can be preprogrammed if necessary.

Q: Could I get the free sample for testing?
A: Yes, in order to show our sincerity, we could offer you free sample for testing to support you.

Q: Do you also supply OEM service?
A: Yes, Since we keep professional manufactory with own moulding line and product line, so we could help to print LOGO on the products to make them unique.

Q: How do you control the quality?
A: Quality is priority, is the life of our company. We have a strict quality controlling system and has gained CE authentication.

Q: How can we get free samples from yours
A: We respect everyone of our customers and can contact or mail to us for RFID Sticker Tag sample testing request , normally 2-4 pcs for testing .
