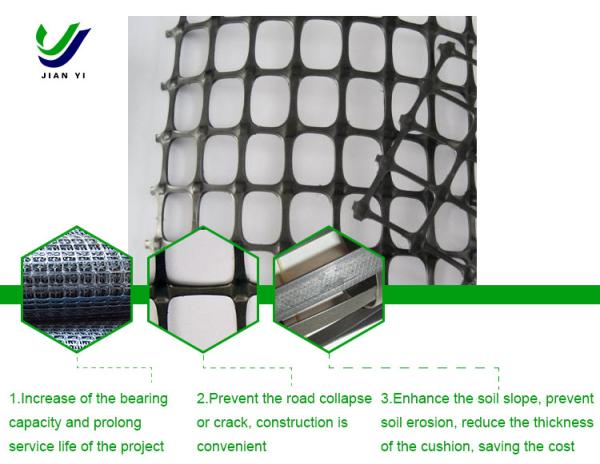

Slope Protection PP Biaxial Geogrid For Increasing Load And Preventing Cracks
Slope Protection PP Biaxial Geogrid For Increasing Load And Preventing Cracks
Specifications
Brand Name :
JianYi
Certification :
ISO9001
Place of Origin :
China
Color :
Black
Material :
Polypropylene
Application :
Erosion control, soil stabilization, slope protection, etc.
Width :
4m~5m
Acid And Alkali Resistance :
Excellent
Unit Weight :
300±30~600±30g/㎡
Tensile Strength at 2% Elongation (LD) :
5~17.5KN/m
Tensile Strength at 2% Elongation (TD) :
5~17.5KN/m
Description

Special Biaxial Plastic Geogrid For Increasing Load And Preventing Cracks

Product Introduction

Bidirectional plastic geoglou is an important geosynthetic material, which can effectively improve the bearing capacity of the roadbed and extend the service life of the roadbed in the process of use, and there are many other benefits.

Product Property

High strength, corrosion resistance, aging resistance, fatigue resistance, longitudinal and horizontal has a great tensile strength.

Product Application

The main application areas of bidirectional plastic geogles include various embankment and roadbed reinforcement, slope protection, tunnel wall reinforcement and large airports, parking lots, dock freight yards and other permanent bearing foundation reinforcement. In addition, it is also widely used in the reinforcement of soft soil projects such as roads and railways, as well as large-scale landfill projects, which can greatly enhance the carrying capacity of soft soil foundation and prevent surface cracks or collapse.

Product Specification and Technical Index

Specification Item TGSG15-15 TGSG20-20 TGSG25-25 TGSG30-30 TGSG35-35 TGSG40-40 TGSG45-45 TGSG50-50
Unit Weight (g/m2) 300 ± 30 330 ± 30 380 ± 30 400 ± 30 450 ± 30 500 ± 30 550 ± 30 600 ± 30
Width (m) 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0
Tensile Strength (KN/m≥, LD) 15 20 25 30 35 40 45 50
Tensile Strength (KN/m≥, TD) 15 20 25 30 35 40 45 50
Yield Elongation (%≤, LD) 13 13 13 13 13 13 13 13
Yield Elongation (%≤, TD) 16 16 16 16 16 16 16 16
Tensile Strength at 2% Elongation (KN/m≥, LD) 5 7 9 10.5 12 14 16 17.5
Tensile Strength at 2% Elongation (KN/m≥, TD) 5 7 9 10.5 12 14 16 17.5
Tensile Strength at 5% Elongation (KN/m≥, LD) 7 14 17 21 24 28 32 35
Tensile Strength at 5% Elongation (KN/m≥, TD) 7 14 17 21 24 28 32 35
