Erosion Control Glass Fiber Geogrid 1-6m For Embankment Reinforcement
Erosion Control Glass Fiber Geogrid 1-6m For Embankment Reinforcement
Specifications
Brand Name :
JianYi
Certification :
ISO9001
Place of Origin :
China
Application :
Erosion control, soil stabilization, slope protection, etc.
Color :
Black
Width :
1-6m
Tensile Strength（LD） :
25~120KN/m
Tensile Strength（TD） :
25~120KN/m
Tensile Elongation（LD） :
3%
Tensile Elongation（TD） :
3%
Grid Size :
12~50mm×mm
Description

Glass Fiber Geogrid For The Treatment Of Mine Damage Areas In Water Conservancy Irrigation And Embankment Reinforcement

Production Introduction

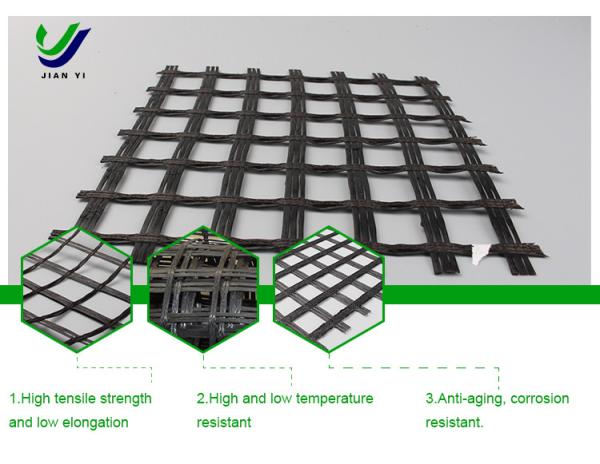

Glass fiber geogrid is a kind of high performance geocomposite material, which is mainly made of non-alkali glass fiber roving without twist through braiding and surface treatment technology.

Production Property

1. High strength and rigidity: Glass fiber geoglyph has high tensile strength and rigidity, which can significantly enhance the bearing capacity and stability of soil.
2. Chemical resistance and corrosion resistance: Due to the characteristics of glass fiber materials, the product has excellent chemical resistance and corrosion resistance, suitable for a variety of harsh environments.
3. Low elongation and high elastic modulus: the elongation of the glass fiber geoglyceris is low (not more than 3%), but the elastic modulus is high, which makes it still able to maintain stable performance under long-term load.
4. Fatigue cracking and creep resistance: glass fiber geoglishes can effectively resist fatigue cracking and creep and extend the service life of the structure.

Production Application

1. Road, railway and airport roadbed enhancement: glass fiber geoglass is often used for road, railway and airport roadbed enhancement, can effectively improve the soil bearing capacity, prevent roadbed settlement and deformation.
2. Slope protection: In slope protection engineering, glass fiber geogrid can effectively prevent soil landslide and improve slope stability.
3. Asphalt pavement and cement pavement reinforcement: glass fiber geoglass is widely used in asphalt pavement and cement pavement reinforcement, especially in the treatment of reflective cracks, has become an irreplaceable material.
4. Water irrigation and levee reinforcement: In water irrigation and levee reinforcement projects, glass fiber geoglishes also play an important role, which can effectively enhance the stability and durability of levees.
5. Mine damage area treatment: In mine damage areas, glass fiber geogrid is used for foundation treatment and reinforcement to restore the stability of the foundation.

Product Specification and Technical Index

Specification Item GSB 25-25 GSB 30-30 GSB 40-40 GSB 50-50 GSB 80-80 GSB 100-100 GSB 120-120 GSB25-25 Self adhesive GSB3030 Self adhesive GSB4040 Self adhesive GSB5050 Self adhesive GSB8080Self adhesive GSB100100 Self adhesive GSB120120 Self adhesive
Tensile Strength (KN/m) LD ≥25 ≥30 ≥40 ≥50 ≥80 ≥100 ≥120 ≥25 ≥30 ≥40 ≥50 ≥80 ≥100 ≥120
TD ≥25 ≥30 ≥40 ≥50 ≥80 ≥100 ≥120 ≥25 ≥30 ≥40 ≥50 ≥80 ≥100 ≥120
Tensile Elongation (%) LD ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3
TD ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3
Grid Size (mm×mm) 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50
Width (m) 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6
