Roadbed Reinforcement Glass Fiber Geogrid Corrosion Resistant 25-120 KN/m
Roadbed Reinforcement Glass Fiber Geogrid Corrosion Resistant 25-120 KN/m
Specifications
Brand Name :
JianYi
Certification :
ISO9001
Place of Origin :
China
Color :
Black
Product Performance :
High temperature resistance, low temperature resistance, aging resistance, corrosion resistance
Product Usage :
Roadbed reinforcement
Radial Fracture Strength :
≥25-120KN/m
Latitudinal Fracture Strength :
≥25-120KN/m
Radial elongation at break :
≥4%
Latitudinal elongation at break :
≥4%
width of cloth :
1-6m
Description

Strong And Durable Ecological Protection Geogrid For Long-Lasting Performance

Production Introduction

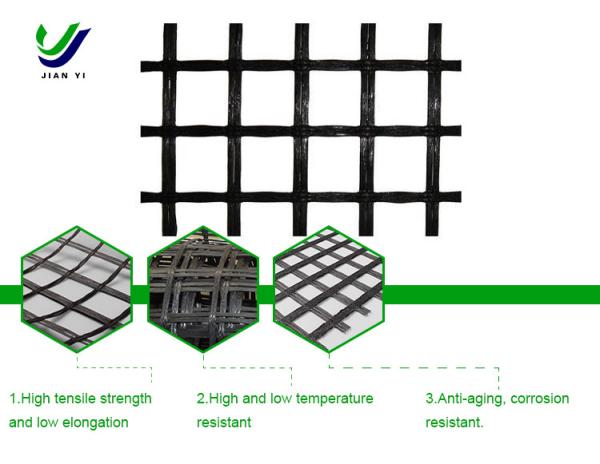

Glass Fiber Geogrid is a semi-rigid products, made ​​of high-strength E-glass fiber, through international advenced technology of warp knitting, make to mesh substrate and then coating the surface. It has become an irreplaceable material for the alpplication on reflective crack of asphalt pavement.

Production Property

High tensile strength and low elongation, high and low temperature resistant, anti-aging, corrosion resistant.

Production Application

It's widely used in projects of asphalt pavement, cement pavement and roadbed enhancements,
railway embankment, dam slope protection, airport runway, prevent and control desertification etc.

Product Specification and Technical Index

Specification Item GSB 25-25 GSB 30-30 GSB 40-40 GSB 50-50 GSB 80-80 GSB 100-100 GSB 120-120 GSB25-25 Self adhesive GSB3030 Self adhesive GSB4040 Self adhesive GSB5050 Self adhesive GSB8080Self adhesive GSB100100 Self adhesive GSB120120 Self adhesive
Tensile Strength (KN/m) LD ≥25 ≥30 ≥40 ≥50 ≥80 ≥100 ≥120 ≥25 ≥30 ≥40 ≥50 ≥80 ≥100 ≥120
TD ≥25 ≥30 ≥40 ≥50 ≥80 ≥100 ≥120 ≥25 ≥30 ≥40 ≥50 ≥80 ≥100 ≥120
Tensile Elongation (%) LD ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3
TD ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3
Grid Size (mm×mm) 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50
Width (m) 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6
