The Biaxial Plastic Geogrid is a high-strength, versatile geosynthetic material designed for soil reinforcement and stabilization in civil engineering and construction projects. Made from premium-grade polypropylene or polyethylene, this geogrid features a uniform grid structure that provides exceptional tensile strength in both longitudinal and transverse directions. It is widely used to enhance the stability of weak soils, reduce settlement, and improve load-bearing capacity in applications such as roadways, retaining walls, and embankments.

Key Features:

High Tensile Strength:

Provides excellent load distribution and reinforcement in both directions.

Enhances the structural integrity of soil and aggregate layers.

Durability and Longevity:

Resistant to chemical, biological, and environmental degradation.

Withstands harsh conditions, including UV exposure and extreme temperatures.

Improved Soil Stability:

Reduces soil movement and prevents lateral spreading.

Increases the bearing capacity of weak or soft soils.

Cost-Effective Solution:

Reduces the need for excessive excavation and replacement of poor soils.

Lowers construction costs by minimizing material usage and labor.

Easy Installation:

Lightweight and flexible, allowing for quick and straightforward deployment.

Can be easily cut to fit specific project requirements.

Versatile Applications:

Suitable for a wide range of civil engineering and construction projects.

Compatible with various soil types and fill materials.

Applications:

Road and Pavement Construction:

Base reinforcement for highways, railways, and airport runways

Prevention of reflective cracking in asphalt pavements

Retaining Structures:

Reinforced soil retaining walls

Steep slope stabilization

Embankments and Foundations:

Stabilization of soft ground and embankments

Reinforcement of foundation soils

Landfill and Erosion Control:

Landfill liner reinforcement

Erosion control in slopes and channels

Technical Specifications:

Material: Polypropylene (PP) or Polyethylene (PE)

Aperture Size: 20 mm x 20 mm to 40 mm x 40 mm (customizable)

Tensile Strength (MD/CMD): 20 kN/m to 60 kN/m (ASTM D6637)

Roll Dimensions:

Width: 2.0 m to 6.0 m (standard)

Length: 50 m to 100 m (customizable)

Color: Typically black or green

Temperature Range: -50°C to +80°C

UV Resistance: High (with UV stabilizers)

Technical Index

Why Choose Our Biaxial Plastic Geogrid?

Proven Performance: Trusted by engineers and contractors worldwide for its reliability and effectiveness.

Custom Solutions: Available in various strengths, sizes, and configurations to meet specific project requirements.

Expert Support: Our team provides technical assistance and installation guidance.

Sustainable Choice: Reduces the environmental impact of construction by minimizing soil excavation and material usage.

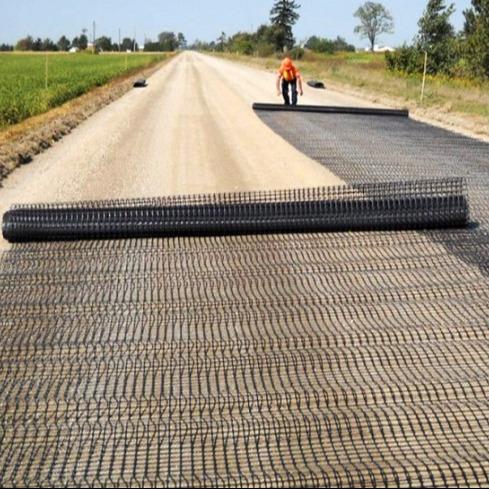

Installation

Excavate the base bed, set up a sand cushion layer (height difference is not more than 10cm), roll it into a platform, lay the grid, the longitudinal axis should be consistent with the main force direction, overlap 15-20cm longitudinally and 10cm horizontally, tie the overlap with plastic tape, and fix it to the ground with U-shaped nails every 1.5-2m on the laid bidirectional plastic geogrid. The laid geogrid should be backfilled with soil in time, and the number of laid geogrid layers depends on the technical requirements.

Ordering Information:

Contact our sales team today to request a quote or discuss your project needs. We offer flexible shipping options and timely delivery to ensure your project stays on schedule.
