Customized High Pressure Aerosol Cylindrical Can Cone 60mm Dia Tinplate Can Tops
Customized High Pressure Aerosol Cylindrical Can Cone 60mm Dia Tinplate Can Tops
Specifications
Place of Origin :
China
MOQ :
negotiable
Packaging Details :
Paper Sleeve & Stretch Film & Pallet/ Carton
Delivery Time :
20-45 Days
Product Type :
Cone
Application :
Industrial and household use
Material :
Tinplate
Deformation pressure :
≥1.8MPa
Usage :
Aerosol can packaging
Spray Pattern :
Cone
Compatibility :
Compatible with most aerosol products
Description

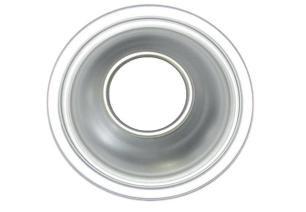

207.5#(60mm) High Pressure Top Aerosol Cone. Clear and Plain Tin Seal Cover

Customized High Pressure Aerosol Cylindrical Can Cone 60mm Dia Tinplate Can Tops
Flange diameter (D5) 69.90±0.25mm
Inner diameter of flange (D4) 67.80±0.25mm
Flange height (H3) 2.45±0.15mm
Buried depth (H4) 5.10±0.10mm
Total height (H5) 18.50±0.15mm
Contact height (H1) 4.00±0.10mm
Fit diameter (D3) 60.20±0.20mm
Outer diameter of tank mouth (D2) 31.20±0.10mm
Inside diameter of tank mouth (D1) 25.40±0.10mm
Dry glue quantity 70-90mg
Deformation pressure≥1.8MPa
Burst pressure ≥ high pressure 2.1MPa
Indenter fits well with the company's indenter
Sheet thickness 0.4
Iron hardness T4BA/T3CA
Coating amount of tin, coating 2.8 gloss oil/gold oil
Inner tin coating amount, coating 1.1/2.8/5.6 inner pigment/gloss oil/gold oil
