Specifications
Brand Name :
jinan diesel engine
Model Number :
12V190
Certification :
ce
Place of Origin :
CHINA
MOQ :
1
Price :
600usd
Supply Ability :
200 pcs month
Delivery Time :
30 days
Packaging Details :
wooden cases
Description

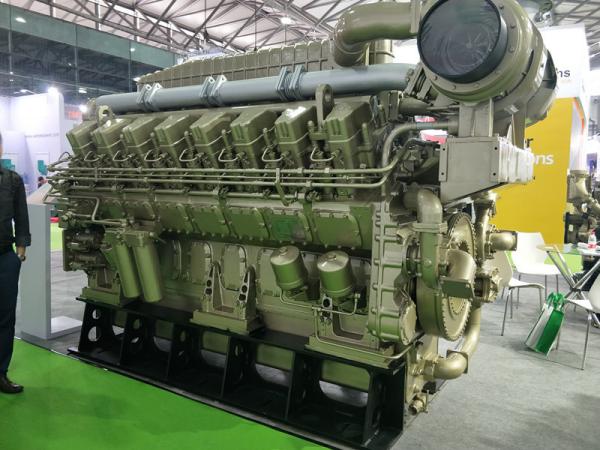

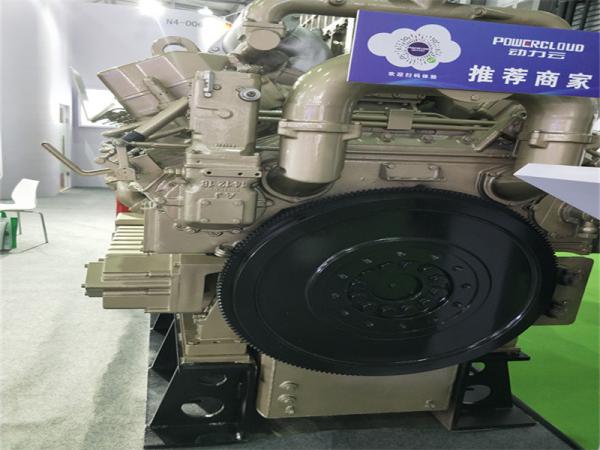

800-1200KW diesel marine engine for ship and boat  jinan diesel engine cnpc jichai power 800-1000kw diesel marine engine  The Perfect Solution for Your Marine Equipment Requirements

Model Rated Power(kw/hp) Rated speed(r/min) Specific fuel consumption(g/kw’h) Specific oil consumption(g/kw’h) Overall dimension L*B*H(mm) Net weight(kg)
A12V190ZLC 1200/1630 1500 ≤ 205 ≤1.0 2969*1907*2206 9300
A12V190ZLC1 1080/1470 1450 ≤ 205 ≤1.0 2969*1907*2206 9300
A12V190ZLC-1 900/1225 1200 ≤ 205 ≤1.0 2969*1907*2206 9300
A12V190ZLC-2 810/1100 1000 ≤ 205 ≤1.0 2969*1907*2206 9300
L12V190ZLC-1 1200/1630 1200 ≤ 202 ≤1.0 2950*1980*2312 9300
L12V190ZLC-2 1000/1360 1000 ≤ 202 ≤1.0 2969*1980*2312 9300
Main technical data
No. and arrangement of cylinders:12,60
.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:215/255mm
Total displacement:73.15/86.72L
Compression ration:14.5:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication
Main specification of diesel gensets
Model of generating set Model of diesel engines Model of generator Rated Power KW Rated voltage V Rated frequency HZ Overall dimension L*B*H(mm) Net weight KG
CCFJ1000/1500 A12V190ZLCD 1FC6506-4SAA42 1000/1500 390 50 6410*2252*2739 20200

Shandong Hongfan Power Technology Co., Ltd, located in the scenic city of Jinan, Shandong Province, is a rapidly growing enterprise in green energy and high-tech solutions. The company specializes in the production, sales, and technical services for diesel and gas generator sets and their parts, focusing on renowned domestic brands such as Jichai, Weichai, Shengdong, Zichai, and Sinotruk.


Our Strengths

Comprehensive Warehousing System

With two warehouses spanning over 2,000 square meters, the company ensures a fully stocked inventory of components, enabling quick response times and timely delivery to meet diverse customer needs.

Expert Technical Team

The company boasts a highly skilled technical team with over 15 key professionals experienced in engine assembly, generator set installation and commissioning, maintenance, and power station operations. The team is adept at executing medium and major repairs and on-site operations both domestically and internationally.


Product Offerings

  • Jinan Diesel Engine: Jichai 190 series, 6190, 8190, 12V190, 16V190 diesel and gas engine.

  • Shengdong Gas Generator: 500kW, 700kW gas generators.

  • Weichai Engines: 6170Z, 8170Z, CW6200, CW8200, R6160Z, WP12, and WP series.

  • Weichai Baudouin Series: 6M26, 6M33, 12M26, 12M33, 16M33, 12M55, M26, M33, M55 Series.

  • Zichai Engines: Z6170, Z8170, 6210, 8210, LB8250, LC8250, ZC6200, Z6180, Z8180, Z6150, 6300, 8300.

  • Generator Sets: (20-2000KW) from leading domestic brands such as Jichai, Shengdong, Zichai, and Yuchai.

  • Maintenance Services: Maintenance and repair services for 190 series engines.

  • Power Station Services: Operation and maintenance services.​


Organizational Structure

Marketing Department

  • Domestic Market: The domestic segment caters to industries such as mining, oil drilling, marine engines, and emergency power supply.

  • International Market: The company operates in regions like Africa, Asia, the Americas, and the Middle East, maintaining stable partnerships with clients from countries such as Russia, Kazakhstan, Indonesia, Malaysia, Bangladesh, the Philippines, Thailand, Chile, Ecuador, Brazil, Libya, Nigeria, and Greece.

Procurement Department

Focused on strategic planning and execution based on sales contracts, ensuring seamless supply chain operations.

Warehousing Department

Handles inventory management, logistics, and export packaging.

Technical Department

Conducts quality inspections, engine assembly, and medium-to-major repairs.


Success Stories

The company has successfully completed various projects, showcasing its expertise and commitment to quality.

800-1200KW diesel marine engine for ship and boat  jinan diesel engine cnpc jichai power 800-1000kw diesel marine engine  The Perfect Solution for Your Marine Equipment Requirements


Commitment to Excellence

Shandong Hongfan Power Technology Co., Ltd. is committed to delivering high-quality products and reliable services with integrity and innovation. The company has earned widespread acclaim and loyalty from customers through continuous improvement and exceptional service.
