Specifications
Brand Name :
OEM Or JIDA
Model Number :
JD250GY-20A
Certification :
N/A
Place of Origin :
Made In China
MOQ :
22 UNITS
Price :
USD 600-750 /UNIT
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 UNITS PER MONTH
Delivery Time :
30 Working Days After the Order Confirmed
Packaging Details :
Carton With Steel Frame
Break Type :
Front and rear disc brakes
Shock absorber :
Inverted front shock absorber
Engine :
CG200CC BALANCE ENGINE
Tire :
Non-slip tire
Start Mode :
Electric/Kick start
Description

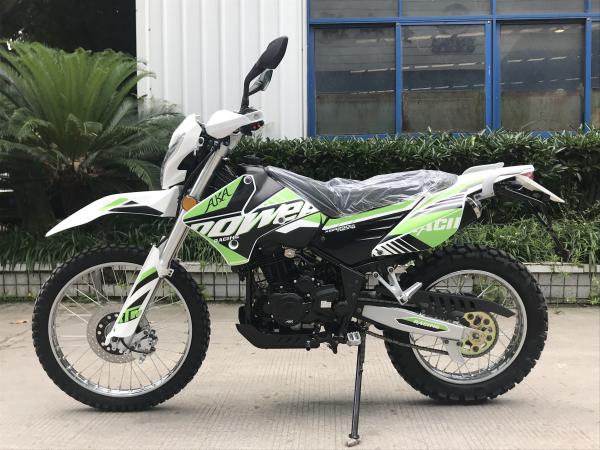

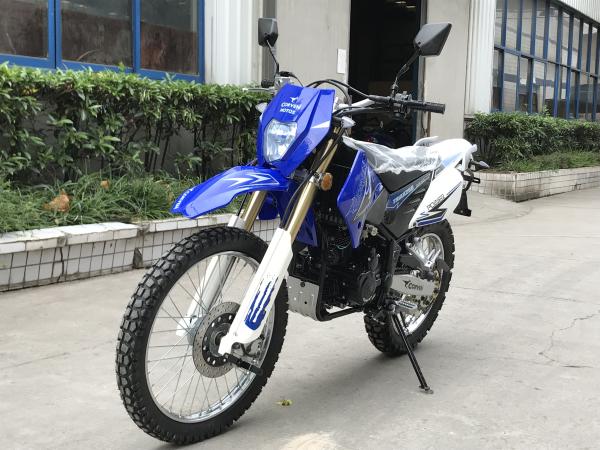

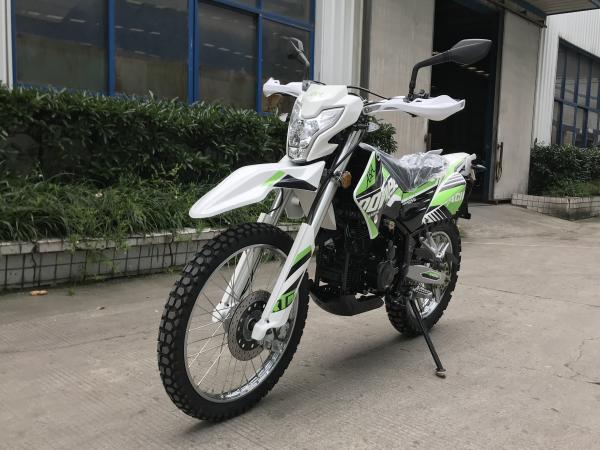

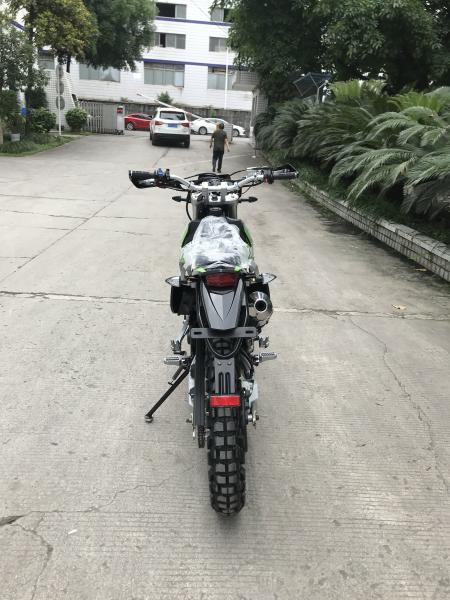

KTM250CC second generationbalanced engine off-road model motorcycle

Main data:

Engine CG200CC BALANCE ENGINE,UP-SIDE DOWN FRONT SHOCK ABSORBER,FRONT AND REAR DISC BRAKE,SPOKE WHEEL,HIGHWAY TIRE,HANDLE BAR COVER ,WINKER,LED TAIL LIGHT,NEW REAR HUB,NEW FUEL TANK,ALLOY FOOTREST, EXHAUST PIPE

Detailed Specifications:

Overall length

2080 mm

Cylinder bore × stroke

63*62 mm

Overall width

830 m

Compression ratio

9.0 : 1

Overall height

1240 mm

Output, max.

9.6KW[7500r/min]

Wheelbase

1320 mm

Torque, max.

14kgcm/min±6000r/min

Max. load

180 kg(including the driver)

Displacement of cylinder

196 ml

Front wheel

2.75-21-4PR

Spark plug

NGK C7HSA

Rear wheel

4.10-18-4PR

Spark plug gap

0.6-0.7 MM

Speed, Max

≥105 km/h

Cap of air valve

Intake valve : 0.05 mm

Brake distance

≤8 m(40km/h) Exhaust valve : 0.05 mm

Climbability

≥16º

Volure of lubricating oil

1.1L

Fuse

9A

Capacity of gasoline tank

13L

Front light illuminator

12V-18W/18W

Transmission ratio

Taillight/Braking light

12V-5W/21W

1st gear

3.769

Betraying light

12V-5W

2nd gear

1.882

Turnlight

12V-5W × 4

3rd gear

1.400

Neutral light

12V-3W

4th gear

1.130

Turn indicator

12V-3W × 2

5th gear

0.960

Meter light

12V-3W × 2

Transmission ratio of sprocket

2.706

Ignition means

C.D.I

Warranty Parts:Engine;Frame;Shock Absorber,Rear Fork;Wheel Rim,etc.

JIDA Service

1. We Offer One year warranty.

For some Main parts of bikes such as Engine,Frame,Shock Absorber,Rear Fork,Wheel Rim,one year warranty is avaliable except the artificial damage.

2. Sample order available.
For Motorcycle parts and engines, sample order is acceptable but you need to take the cost of shipping.

For Motorcycles,you can come to our factory to check the quality of the bike ,and the MOQ should be the
QTY that can just put in one 20GP container(usually it is 30 units -40 units)

3. We can design as you requested about the Engine Logo ,Stickers,logos on the parts ,packings ,etc.

4. You can call us or write to us 7*24H .

FAQ

Q1. Are you a manufacturer or tradting company?

A1: We are factory produce motorcycles and parts for more than 9 years,we can produce more than 3000 units bikes every month,and a very large number of parts ,we have a good quality control system and fast after-sell service.

Q2. Could I get one sample ?

A2: For parts yes ,we can send you the some part for free and you need to take the cost of shipping .

Q3. What are your terms of payment?

A3: T/T,L/C,D/P,D/A,O/A is accetable depend on your order .

Q4: What is your terms of price?

A4: Usually we make FOB terms ,but we also accept CFR,CIF and other terms of price.

Q5: Which port does the container ship from ?

A5: Mostly it goes from Chongqing Port ,but some times we send to Shanghai and other port ,too .

Q6. How many colors can i order ?

A6: For motorcycles ,we accept 2 colors in one 20gp container and 4 colors in one 40HC container.
