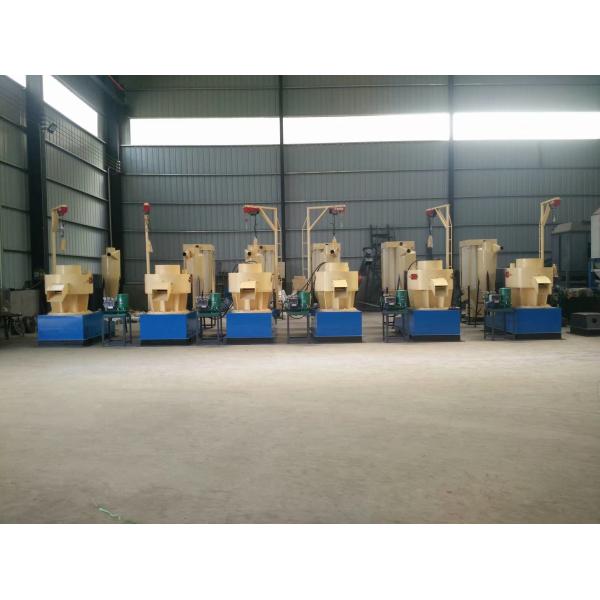

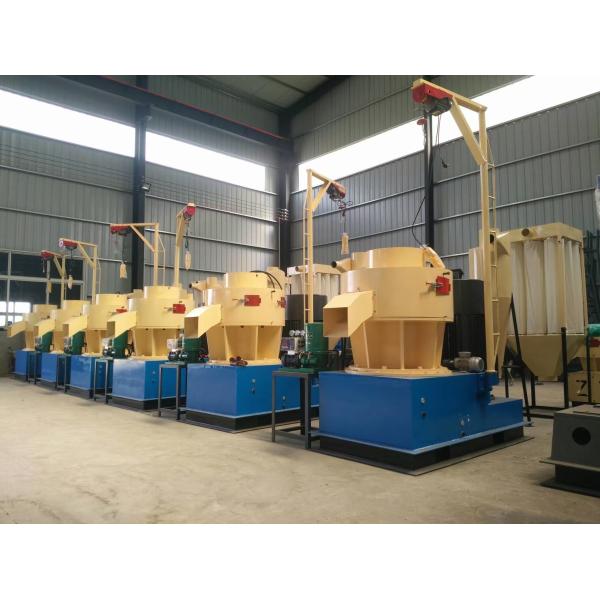

vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour
Specifications
Brand Name :
JIEFAN
Model Number :
LSKJ550
Certification :
CE SGS
Place of Origin :
CHINA
MOQ :
1SET
Price :
FOBQINGDAO port:$18000/set
Payment Terms :
T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
30 working days
Packaging Details :
Nude package or Plywood package
pellet mill line :
LSKJ550
Diameter of mould :
550mm

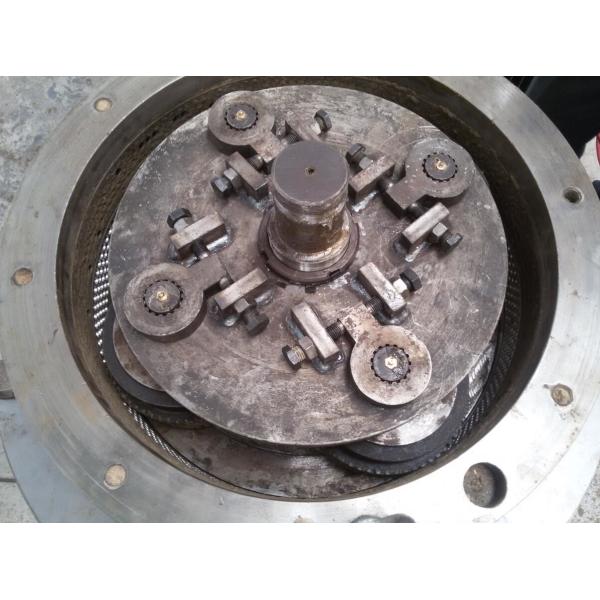

Roller :
4roller
Capacity :
1500kg per hour
voltage :
380v/50hz/90kw
Description

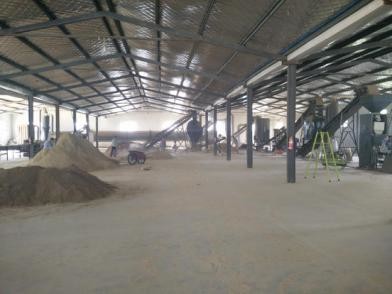

vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour

Raw material:sawdust,rice husk,wood trunks etc

Mositureof raw material :30%-50%

Capcity:1500kg per hour

vertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hourvertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hourvertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hourvertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hourvertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hourvertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hourvertical ring die biomass wood pellet mill production line LSKJ550 1500kg per hour

NO

 Product (set)

Power

(kw)

380v/50hz

Remark

It include
1

drum model

wood chipper system

DX-215

 1 1.5+3x2+6+55

8m inlet conveyor

6m outlet conveyor

Width of conveyor: 0.5m
2

HIGH EFFICIENCY HAMMER MILL SYSTEM

GT65-75

 1 45+11+2.2

With cyclone,dust collector system etc
3

CONVEYOR

8M(L)X0.5M(W)

 1 1.5 To deliver wood sawdust to dryer
4

Hot air stove

ZT80

 1 To produce at your workshop
5

DRUM DRYER

DIAMETET:1.2M

LENGTH:12M

 1 11+5.5 +15 It is with dust collector system
6

Belt conveyor

8m x 0.5m

 1 1.5 To deliver dry wood sawdust to storage
7

Storage

4m3

 1 To load dry wood sawdust
8

Screw conveyor

Diameter:220mm

Length:3m

 1 1.5 To deliver dry wood sawdust to pellet mill machine
9

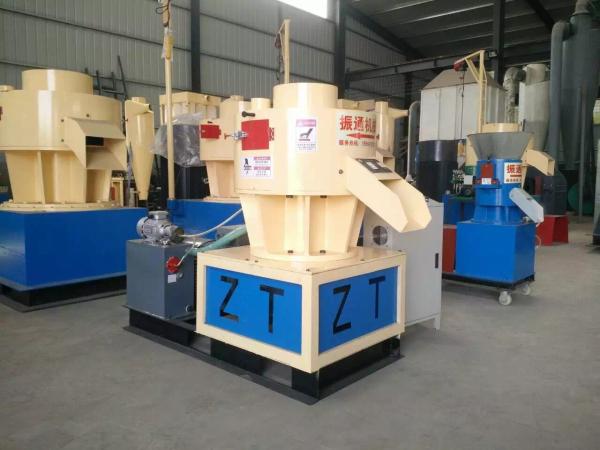

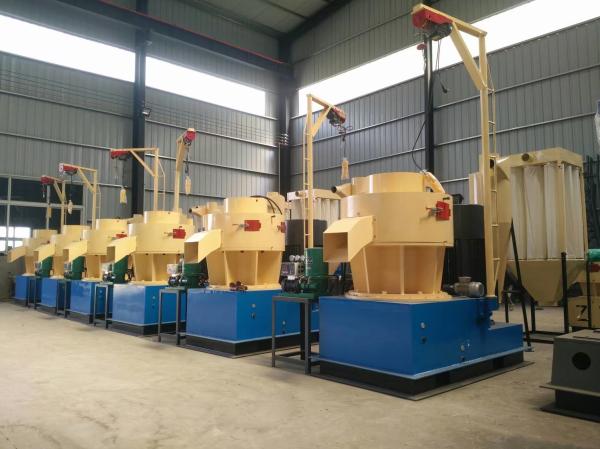

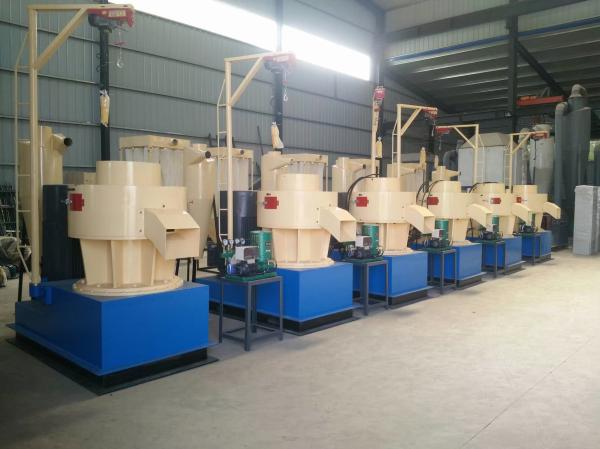

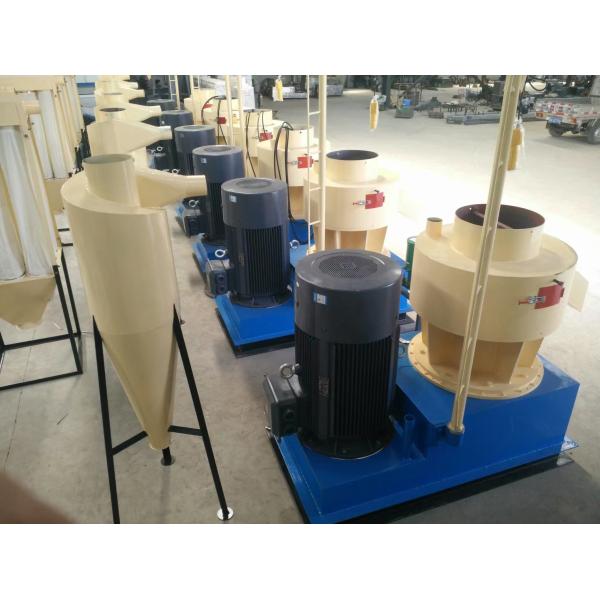

Pellet mill machine

LSKJ550

Capacity:1200-1500kg per hour

 1 90 + 0.75+0.37+0.6

With cyclone,dust collector system

To press dry wood sawdust into pellet

With auto oil lubricator +lifting device to change mould
10

Conveyor

8m x 0.5m

 1 1.5 To deliver wood pellet to cooler machine
11 Cooler 1 5.5+1.5+0.75

With dust collector system ,cyclone etc

With sieve screen
12

Conveyor

8mx 0.5m

 1 1.5 To deliver cooled wood pellet to package machine
13 Package machine 1 3 To package wood pellet
