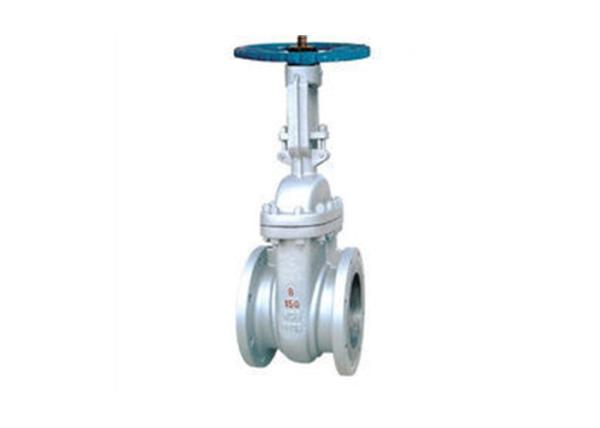

Electric - Actuated Cast Steel Gate Valve 1/2 - 8 Pressure 150lb - 1500lb
Electric - Actuated Cast Steel Gate Valve 1/2 - 8 Pressure 150lb - 1500lb
Specifications
Brand Name :
JIEYU
Certification :
API ISO Ts CE
Place of Origin :
Wenzhou China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
7-30 work days
Packaging Details :
Plywood Case
Material :
ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Media :
Oil, Gas, Water, Steam, Acids
Operation :
Handwheel
Pressure :
150lb-1500lb
Connection End Type :
Bolted Bonnet Socket-Welding End, Threaded End, Flange End, Socket-Welding & Threaded End (to Order)
Size :
1/2"-8"
Description

Electric - Actuated Cast Steel Gate Valve 1/2" - 8" Pressure 150lb - 1500lb

Design Description

Full Port Design

OS&Y, outside screw and yoke

BB, Bolted Bonnet

Flexible wedge, fully guided

Choice of Solid or Split Wedge

Renewable Seat Rings

Rising Stem and Non-rising Handwheel

Flanged

Available with BG operator.

Standard:

Steel Gate Valves, API 600/API 6D

Steel Gate Valves, ISO 10434/ISO14313

Steel Valves, ASME B 16.34

Face to Face: ASME B16.10

End Flanges: ASME B16.5

Inspection and Test, API 598 /API 6D

Specification

Product Name API Wcb Flange Cast Steel Gate Valve (150LB~1500LB)
1. Material A351 CF8M/CF8/CF3/CF3M, A216 WCB
2. Size 1 1/2''~48'' ( DN40~DN1200)
3.Certificate ISO9001 & CE
4. Port Full Port
5. Working Pressure 150LB~1500LB
6. Connection Ends Flange
7. Working Temp. -196ºC~450ºC
8. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
9. Seal Metal
Standard
Design & Manufacture standard: API 600, API 6D
Pressure & Temperature standard: ASME B16.34
Face to Face ASME B16.10
Flange Dimension ASME B16.5
Inspection & Testing API598
Shipment
Delivery Time 15~20 Days
Package Standard Exporting Plywood Case
Shipping Port Ningbo/Shanghai, China
Shipping Terms Exw, FOB, CFR, CIF, etc.
Payment Terms T/T, Western Union, PayPal, etc.

30% prepayment, 70% balance paid before

shipping or against copy of BL
Warranty 12 Months after leaving factory
Others

We also manufacture Flange Ball Valve,

Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer
