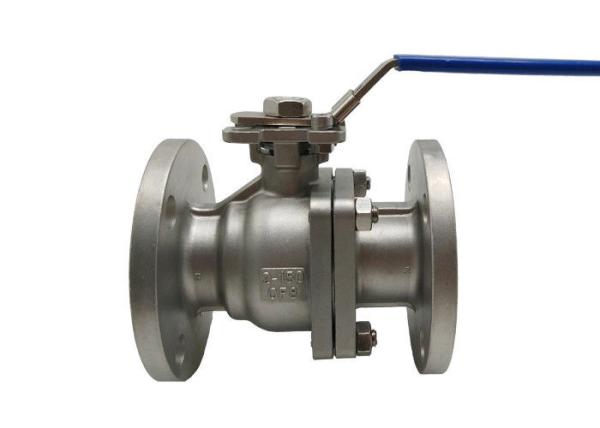

Class 150LB CF8 Stainless Steel Flanged Ball Valve 2 Inch Operating By Handle
Class 150LB CF8 Stainless Steel Flanged Ball Valve 2 Inch Operating By Handle
Class 150LB CF8 Stainless Steel Flanged Ball Valve 2 Inch Operating By Handle
Class 150LB CF8 Stainless Steel Flanged Ball Valve 2 Inch Operating By Handle
Specifications
Brand Name :
JIEYU
Certification :
API ISO Ts CE
Place of Origin :
Wenzhou China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
7-30 work days
Packaging Details :
Plywood Case
Valve :
CF8
Ball :
CF8
Seat Material :
PTFE
Size :
1/2"~8"
Standard :
ANSI
Structure :
Full Port
Description

Class 150LB CF8 Stainless Steel Flanged Ball Valve 2 Inch Operating By Handle

Specifications

Casting Floating Ball Valve

Applicable Standards:
- Design and Manufacturing:GB12237-89

- Connection:JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection:GB/T13927-1992

Size Range:
- 1/2"~8"

Pressure Rating:
- ASME CL, 150, 300
Temperature Range:
- -20°C~185°C

* Class 150LB 2 Piece Stainless Steel Flange Full Port Ball Valve

Flanged Ball Valves have a different connection type than the other ball valves we carry. Meant to be mated with another flanged connection, th e valves allow for easier cleaning and replacement.

Pressure Size φD L φE φB φC T f N-φh H H1 W M P
Class150 1/2" 13 108 89 60.5 35 11.5 1.6 4-16 48 79 135 9 9
3/4" 19 117 98 70 43 11.5 1.6 4-16 53 84 135 9 9
1" 25 127 108 79.5 51 12 1.6 4-16 64 95 170 11 11
1 1/4" 32 140 117 89 64 13 1.6 4-16 71 103 170 11 11
1 1/2" 38 165 127 98.5 73 15 1.6 4-16 76 111 200 14 14
2" 51 178 152 120.5 92 16 1.6 4-19 85 120 200 14 14
2 1/2" More Specifications,Contact us freely
3"
4"
5"
6"
8"


Briefly Introduction

The structure of the floating ball valve is floating. Under the action of the medium pressure, the ball can generate a certain displacement and press against the sealing surface at the outlet end to ensure the sealing of the outlet end.
The floating ball valve has a simple structure and good sealing performance, but the load of the ball subjected to the working medium is all transmitted to the outlet sealing ring, so it is necessary to consider whether the sealing ring material can withstand the working load of the spherical medium. This structure is widely used in medium and low pressure ball valves.

The Strength of Ball Valve

1. The fluid resistance is small, and the full-bore ball valve is nearly with no flow resistance.


2. Simple structure, small size and light weight.


3. It has two sealing faces, and the sealing surface material of the ball valve is widely used in various plastics, and has good sealing performance and can achieve complete sealing. It has also been widely used in vacuum systems.

Model Selection

2PC Full Port Floating Ball Valve

Standard ANSI GB JIS DIN
Pressure 300LB PN16/PN25/PN40 10K/20K PN16/PN40
Matreial 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB
Model 1) High Platform Model 2) Handle Model
