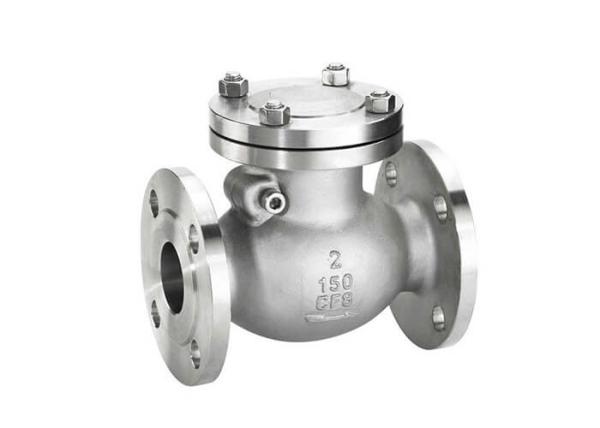

Adjustable Stainless Swing Check Valve , Industrial Flanged Check Valve Water Supply
Adjustable Stainless Swing Check Valve , Industrial Flanged Check Valve Water Supply
Adjustable Stainless Swing Check Valve , Industrial Flanged Check Valve Water Supply
Adjustable Stainless Swing Check Valve , Industrial Flanged Check Valve Water Supply
Specifications
Brand Name :
JIEYU
Certification :
API ISO Ts CE
Place of Origin :
Wenzhou China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
7-30 work days
Packaging Details :
Plywood Case
Disc :
Ductile Lron Coated By Nylon,Ductile Lron Coated By Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316l,Duplex Stainless Steel,Aluminum Bronze
Body :
Cast Lron,Ductile Lron,Carbon Steel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L
Stem :
Carbon Steel 45#,Stainess Steel 416,Stainless Steel 304,Stainless Steel 316
Seat :
EPDM,NBR,PTFE,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon Rubber
Size :
DN50-DN600
Nominal Pressure :
Metal Check Valve
Description

Industrial Flange Metal Check Valve Water Supply , Adjustable Stainless Steel Swing Check Valve

Flange swing check valve

Overview of swing check valves
Swing check valve, also known as one-way valve or check valve, its role is to prevent the backflow of media in the pipeline. The opening and closing parts are opened or closed by the medium flow and force to prevent the medium from flowing back. The valve is called a check valve. Check valves belong to automatic valves. They are mainly used in pipelines where media flow in one direction. Only one direction is allowed to flow in order to prevent accidents. Such valves should normally be installed horizontally in pipes.

Design and Application standard
1. Design and manufacturing standards: GB/T12236-2008
2. Connection flange standard: JB/T79-94
3. Structure length standard: GB/T12221-2005
4. Inspection and test standards: JB/T9092-99
5. The valve flap is a swing type. The flow channel is straight through, and both horizontal and vertical pipes can be installed."

Main performance specification

Type (MPa) Nominal pressure (MPa)Test preeur Applicable temp Applicable medium
Shell Seal
H44T-10 1.0 1.5 1.1 ≦200 steam
H44W-10 ≦100 Gas, oil
H44T-16 1.6 2.4 1.76 ≦200 steam
H44W-16 ≦100 Gas, oil
H44W-16P -20～150 Nitric acid
H44W-16R Acetic acid


Main part material

Parts ZG1Cr18Ni9Tiseries ZG00Cr18Ni10 series ZG1Cr18Ni12M02 series ZG00Cr17Ni14M02 series WCB series
Valve body, bonnet ZG1Cr18Ni9Ti ZG00Cr18Ni10 ZG1Cr18Ni12M02Ti ZG00Cr17Ni14M02 WCB
Rocker G1Cr18Ni9Ti ZG00Cr18Ni10 ZG1Cr18Ni12M02Ti ZG00Cr17Ni14M02 WCB
Valve flap G1Cr18Ni9Ti ZG00Cr18Ni10 ZG1Cr18Ni12M02Ti ZG00Cr17Ni14M02 WCB
Gasket 304+PTEF 304L+PTEF 316+PTEF 316L+PTEF Graphite+304
Stud 1Cr17Ni2 1Cr17Ni2 1Cr17Ni2 1Cr17Ni2 35CrMOA
Nut 1Cr18Ni9Ti 1Cr18Ni9Ti 1Cr18Ni9Ti 1Cr18Ni9Ti 45
