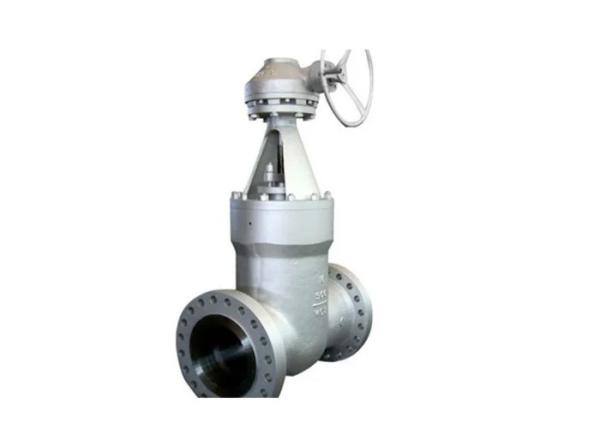

SS A351 Ck3mcu Bolt Bonnet Gate Valve , Wedge Type Gate Valve With Eliminates Leaks
SS A351 Ck3mcu Bolt Bonnet Gate Valve , Wedge Type Gate Valve With Eliminates Leaks
Specifications
Brand Name :
JIEYU
Certification :
API ISO Ts CE
Place of Origin :
Wenzhou China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
7-30 work days
Packaging Details :
Plywood Case
Seal Surface :
Wedge Gate Valve
Thread Position of Valve Rod :
Outside Gate Valve
Application :
Industrial Usage, Water Industrial Usage
Wedge :
4A(2205), 5A(2507), C5, C12A, Wc6, Wc9,Inconel 625
Transport Package :
Wooden Case
Description

Super Ss A351 Ck3mcubolt Bonnet Industrial Gate Valve

JIEYU VALVE manufactures superior cast body, bolted bonnet OS&Y gate valves in a variety of materials, trims, packing types, sizes (2" thru 48") and pressure classes (150 thru 2500). The mechanical characteristics make the YIBO wedge gate valve are ideal for bi-directional "total flow system open/shut-off" applications with minimal turbulance and pressure drop.

The valve design conforms to API 600 and B16.34. Face-to-face and end-to-end dimensions conform to ANSI
B16.5 and B16.25.

Gate Valve Benefits

  • Little friction and minimal drop in pressure when fully opened
  • Eliminates leaks
  • Rising stem configurations make visual inspections easy
  • Nonrising stem configurations are ideal for areas underground or where space is limited
  • Increase efficiency by saving energy when opening or closing a gate valve

Material Selection for Gate Valves

  • Carbon Steel (A105-WCB, WCC)
  • Low Temperture Carbon Steel (LF2-LCC, LCB)
  • Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
  • Low Alloys (F1-WC1, F11-WC6, F22-WC9)
  • High Alloys (F5-C5, F9-C12,F91-C12A, F62-CN3MN, F20-Alloy 20 )
  • Duplex & Super Duplex (2205-4A, 2507-5A, S32760-6A)
  • Bronze (C95800, C95500, C95400)
  • Inconel (Inconel 625, Inconel 825)

Remarks: The above materials are applicable to valve body.
