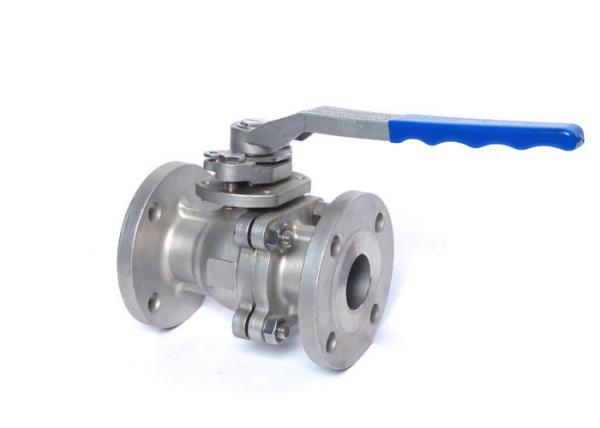

ANSI Industrial Flanged Ball Valve Split Body Stainless Steel Floating Class 150
ANSI Industrial Flanged Ball Valve Split Body Stainless Steel Floating Class 150
ANSI Industrial Flanged Ball Valve Split Body Stainless Steel Floating Class 150
ANSI Industrial Flanged Ball Valve Split Body Stainless Steel Floating Class 150
Specifications
Brand Name :
JIEYU
Certification :
API ISO Ts CE
Place of Origin :
Wenzhou China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
7-30 work days
Packaging Details :
Plywood Case
Body Material :
CF8/CF8M/CF3/CF3M
Standard :
ANSI
Size :
1/2" ~ 8"
Connection :
Flange
Structure :
Split Body
Pressure :
150LB
Description

ANSI Industrial Flanged Ball Valve Split Body Stainless Steel Floating Class 150

Specifications

ANSI Standard Handle Oprated Ball Valve

Applicable Standards:
- Design and Manufacturing: ASME B16.34, API 608

- Flange Connection: ASME B16.5

- Fireproof Test: API607 4th 1993

- Test and Inspection: API598, API6D

- Face to face dimension: ASME B16.10

Size Range:
- 1/2" ~ 8"

Pressure Rating:
- ANSI 150LB 300LB
Temperature Range:
- -20°C~185°C

Ball valves shut off the flow of water using a ball, inside the valve. When in the "on" position, the opening is in line with the pipe, allowing water to flow freely. When in the "off" position, the opening is perpendicular to the flow of water, stopping the flow completely. In a ball valve, flow is controlled with a lever. Placing the lever perpendicular to the pipe allows water to flow. Moving it at 90-degree angle stops the flow.

Unit:mm
Pressure Size φD L φE φB φC T f
Class150 1/2" 13 108 89 60.5 35 11.5 1.6
3/4" 19 117 98 70 43 11.5 1.6
1" 25 127 108 79.5 51 12 1.6
1 1/4" 32 140 117 89 64 13 1.6
1 1/2" 38 165 127 98.5 73 15 1.6
2" 51 178 152 120.5 92 16 1.6
2 1/2" 64 190 178 139.5 105 18 1.6
3" 76 203 190 152.5 127 19 1.6
4" 102 229 229 19.5 157 24 1.6
5" 127 356 254 216 186 24 1.6
6" 152 394 279 241.5 216 26 1.6
8" 203 457 343 298.5 270 29 1.6

Application

Ball valves are commonly chosen thanks to their ability to be successful used across a range of applications and markets. As mentioned before, ball valves are a big hit with the oil and natural gas industry, but also find a place in many manufacturing sectors, chemical storage, and even residential uses.

Why choose ball valve?

Ball valves enjoy massive popularity thanks to their compact and low maintenance design that requires no lubrication while still offering users a tight seal with minimal torque. Ball valves are also the least expensive option when it comes to choosing among all of the valve arrangement types.

Model Selection

2PC Full Port Floating Low Platform Ball Valve

Standard ANSI GB JIS DIN
Pressure 150LB/300LB PN16/PN25/PN40 10K/20K PN16/PN25/PN40
Matreial 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB
Model 1) High Platform Model 2) Handle Model

ANSI Industrial Flanged Ball Valve Split Body Stainless Steel Floating Class 150
