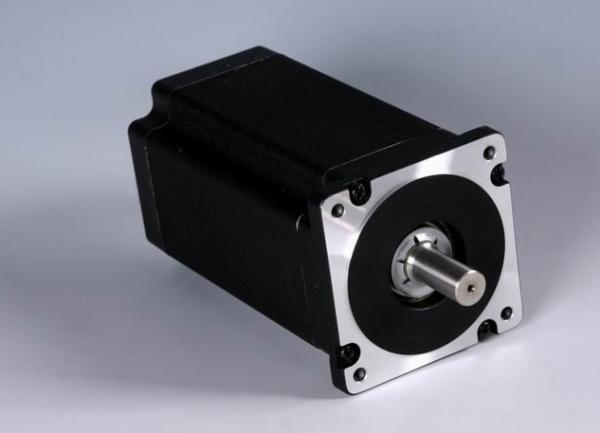

122.4 kg-cm 8 Wire NEMA 34 stepper motor J86HB156-06
122.4 kg-cm 8 Wire NEMA 34 stepper motor J86HB156-06
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Jingbo
Model Number :
J86HB156-06
Certification :
CE
Step Angle(degree) :
1.8
Holding torque(N.m) :
12
Current(A/Phase) :
6.0
Delivery Time :
in stock
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
500pcs per week
MOQ :
1pc
Description

122.4 kg-cm 8 Wire NEMA 34 stepper motor J86HB156-06

General specifications

Stepping accuracy………………5%
Temperature rise…………………80℃ Max
Ambient temperature……………-20℃～+50℃
Insulation resistance……………100MΩMin 500VDC
Dielectric strength………………500V AC 1minute
Allowable radial load……………0.06mm Max (450g load)
Allowable thrust load……………0.08mm Max (450g load)
■Specifications
Model
Step Angle
(°)
Length
L(mm)
Holding Torque
(N.m)
Current
(A/Phase)
Resistance
(Ω)
Inductance
(mH)
Rotor inertia
(g.cm2)
Weight
(Kg)
4 leads parallel
4 leads series
6 leads
J86HB65-04
1.8
65
3.3
4.0
3.0
4.3
1.4
3.9
1000
1.7
J86HB80-04
80
4.5
6.0
3.0
4.2
0.8
3.5
1400
2.3
J86HB118-06
118
8.5
6.0
4.0
4.2
1.2
6.5
2700
3.8
J86HB156-06
156
12
6.2
4.0
4.2
1.25
9
4000
5.4

■ Dimension

122.4 kg-cm 8 Wire NEMA 34 stepper motor J86HB156-06

Model

D (mm)

Shaft extension (mm)

J86HB65-04

9.5

25×1

J86HB80-04

12.7

25×1

J86HB118-06

12.7

5×25

J86HB156-0612.75×25

■ Frequency-torque characteristics

122.4 kg-cm 8 Wire NEMA 34 stepper motor J86HB156-06

■Connections

122.4 kg-cm 8 Wire NEMA 34 stepper motor J86HB156-06
