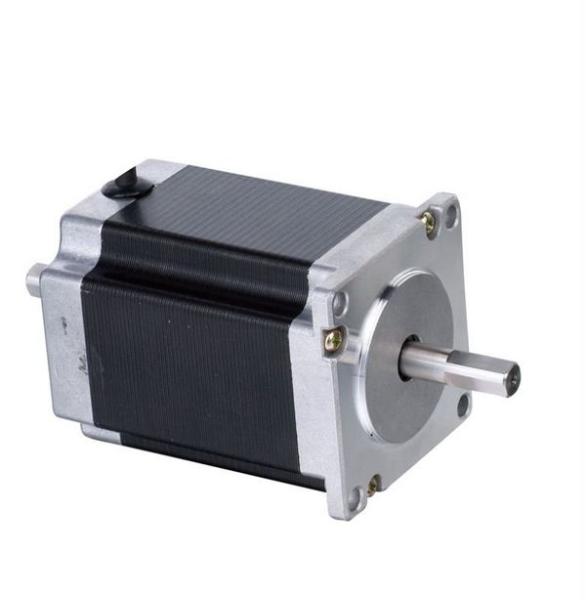

1.2 Size 130mm High Torque Hybrid Stepping Motor J31328
1.2 Size 130mm High Torque Hybrid Stepping Motor J31328
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Jingbo
Model Number :
J31328
Certification :
CE
Step Angle(degree) :
1.2
Holding Torque(N.m) :
50
Current(A/Phase) :
5.0
Packaging Details :
13*13* 25cm
Delivery Time :
in stock
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
500pcs per week
MOQ :
1pc
Description

1.2° Size 130mm High Torque Hybrid Stepping Motor J31328

General specifications

Stepping accuracy 5%

Temperature rise 80cMax

Ambient temperature -20c~+50c

Insulation resistance 100MMin 500VDC

Dielectric strength 500V AC 1minute

Allowable radial load 0.06mm Max (450g load)

Allowable thrust load 0.08mm Max (450g load)

Specifications

Model
Step Angle
(°)
Length
L(mm)
Holding Torque
(N.m)
Current
(A/Phase)
Power supply
Rotor inertia
(Kg.cm2)
Weight
(Kg)
Matched drive
J31318
1.2
183
20
4
AC220V4.5A
26.7
14.1
JB3722M
J31322
215
28
4
AC220V4.5A
33.97
17.2
JB3722M
J31325
247
35
4
AC220V4.5A
41.24
19.8
JB3722M
J31328
282
50
5
AC220V5.5A
45
25
JB3722M

■ Dimension

1.2 Size 130mm High Torque Hybrid Stepping Motor J31328

Model
D (mm)
Note
J31318
24
Flat key 8×30
J31322
24
Flat key 8×30
J31325
24
Flat key 8×30
J31328
19
Flat key 6×30

Frequency-torque characteristics

1.2 Size 130mm High Torque Hybrid Stepping Motor J31328

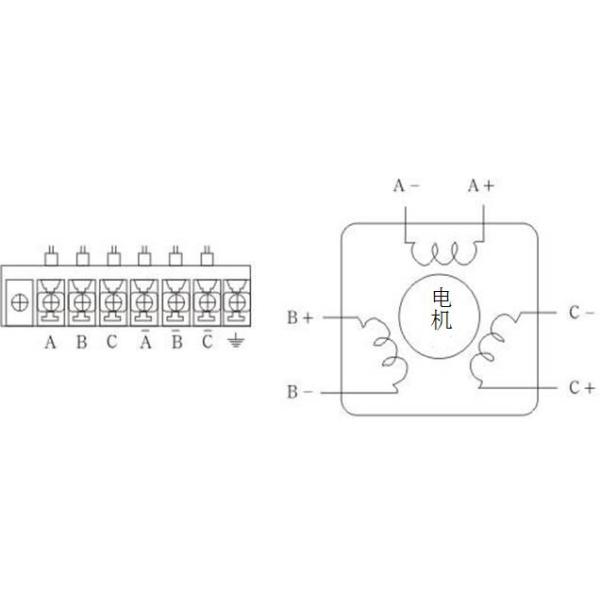

■ Connections

1、△method: (A+、B-)----phase, (B+、C-)----phase, (C+、A-)----phase, is set to be U,V, W each. The driven current set to be √3 times of phase current. For example: the phase current of J31115 is 3.5A, the current of drive should be set to√3×3.5=6A.

1.2 Size 130mm High Torque Hybrid Stepping Motor J31328

2、Y method: A-、B-、C- are parallel connection and A+、B+、C+ is U、V、W phase each. The current of drive should be set to be equal to phase current of motor. For example: the phase current of J31115 is 3.5A, the current of drive is 3.5A.

1.2 Size 130mm High Torque Hybrid Stepping Motor J31328
