2phase Stepper Motor Driver YKC2405M DC20-50V 3.0A 128Microstep
2phase Stepper Motor Driver YKC2405M DC20-50V 3.0A 128Microstep
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YAKO
Certification :
CE
Model Number :
YKC2405M
Phase :
2
Condition :
New
Warranty :
1 year
MOQ :
1
Delivery Time :
in stock
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
500pcs per week
Description

2phase Stepper Motor Driver YKC2405M DC20-50V 3.0A 128Microstep

Features

  • High performance, low prices
  • Provides 15 kinds microstep selection, upmost microstep can be set to 128x.
  • Special control circuit, greatly reduce noise, increase steadiness.
  • Upmost response frequence amounts to 200Kpps.
  • Once the pulse stops for 100ms,phase current automatically cut by half.
  • Photo coupler isolated input/output
  • Drive current range from 0.7A/phase-3.0A/phase
  • Single power input, voltage range from DC20-50V
  • Protection circuit: Overcurrent.
  • Dimension: 118x72x33(mm3). Net Weight: 0.2kg

Wiring example

2phase Stepper Motor Driver YKC2405M DC20-50V 3.0A 128Microstep

Current setting

2phase Stepper Motor Driver YKC2405M DC20-50V 3.0A 128Microstep

Input signal timing diagram

2phase Stepper Motor Driver YKC2405M DC20-50V 3.0A 128Microstep

Microstep setting List

2phase Stepper Motor Driver YKC2405M DC20-50V 3.0A 128Microstep

SW4: OFF=Half Current; ON=Full Current

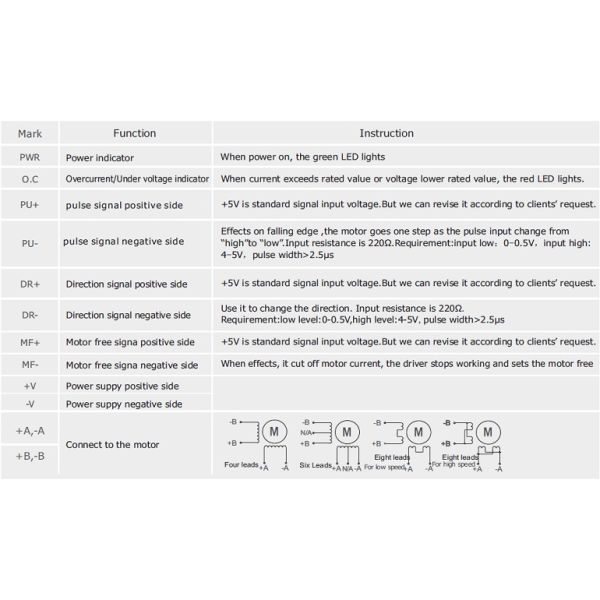

Terminal function

2phase Stepper Motor Driver YKC2405M DC20-50V 3.0A 128Microstep

! Caution

1. Do not reverse the power input, input voltage should not exceed DC50V

2. Input logic should be 5V, otherwise it should connect a resistor

3. O.H is malfunction indicator. Once the driver temperature exceeds 70°C, the current will be cut off automatically and the driver will resume working till the temperature drops to 50°C. If this happens, please install ventilation equipment.

4. Passing the origin or there is pulse output, TM LED lights
