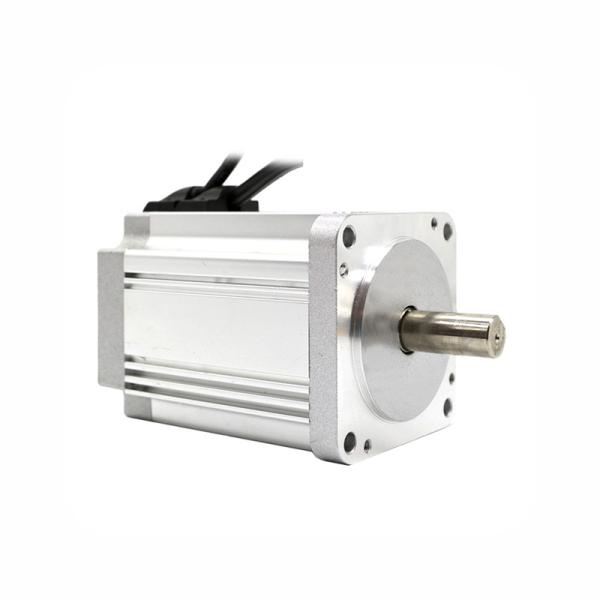

Size 80mm Brushless DC Motor 48V 3000RPM 220W 0.7N.m J80BLS106-430A 3phase body length 106mm BLDC motor
Size 80mm Brushless DC Motor 48V 3000RPM 220W 0.7N.m J80BLS106-430A 3phase body length 106mm BLDC motor
Specifications
Brand Name :
KIMBROUGH
Model Number :
J80BLS106-430A
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Supply Ability :
10000pcs per month
Packaging Details :
carton
Output Power :
220W
Continuous Current(A) :
5.5A
Torque :
0.7N.m
Description

Size 80mm Brushless DC Motor 48V 3000RPM 220W 0.7N.m J80BLS106-430A 3phase body length 106mm BLDC motor

Winding type Star
Hall effect angle 120°
Insulation class B
Ambient temperature range -20°C ~ +50°C
Insulation resistance 100MΩMin 500VDC
Dielectric Strength 500VDC 1 minute

Specification :

Model J80BLS86-430A J80BLS106-430A J80BLS126-430A

Number of

poles

 4

Number of

phase

 3

Nominal Voltage

VDC

 48 48 48

Rated speed

RPM

 3000 3000 3000

Rated torque

Nm

 0.4 0.7 1.2

Rated current

Amps

 3.2 5.5 10

Output power

Watts

 126 220 376

Peak torque

Nm

 1.2 2.1 3.81

Torque constant

Nm/A

 0.126 0.127 0.127

Back EMF

V/k RPM

 9.1 9 8.7

Rotor Inertia

kg.mm2

 39 53 65

Body length(L)

mm

 86 106 126

Mass

kg

 2.0 2.5 3.0

Dimension unit:mm

Size 80mm Brushless DC Motor 48V 3000RPM 220W 0.7N.m J80BLS106-430A 3phase body length 106mm BLDC motor

Wiring diagram

Size 80mm Brushless DC Motor 48V 3000RPM 220W 0.7N.m J80BLS106-430A 3phase body length 106mm BLDC motor
