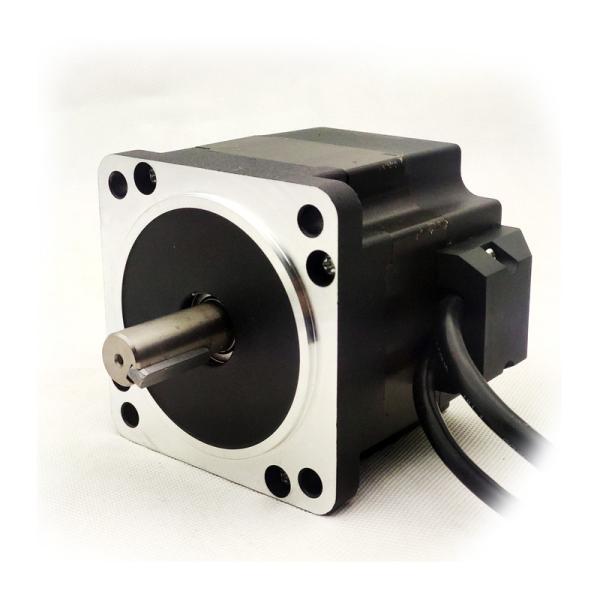

Flange 86mm Brushless DC Motor 48V 3000RPM 314W 1.0N.m J86BLS80-430A 3phase body length 80mm BLDC motor
Flange 86mm Brushless DC Motor 48V 3000RPM 314W 1.0N.m J86BLS80-430A 3phase body length 80mm BLDC motor
Specifications
Brand Name :
KIMBROUGH
Model Number :
J86BLS80-430A
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Supply Ability :
10000pcs per month
Packaging Details :
carton
Output Power :
314W
Continuous Current(A) :
8.5A
Torque :
1.0N.m
Description

Flange 86mm Brushless DC Motor 48V 3000RPM 314W 1.0N.m J86BLS80-430A 3phase body length 80mm BLDC motor

Winding type Star
Hall effect angle 120°
Insulation class B
Ambient temperature range -20°C ~ +50°C
Insulation resistance 100MΩMin 500VDC
Dielectric Strength 500VDC 1 minute

Specification :

Model J86BLS80-430A J86BLS90-430A J86BLS105-430A J86BLS115-430A J86BLS130-430A J86BLS130-630A

Number of

poles

 4

Number of

phase

 3

Nominal Voltage

VDC

 48 48 48 48 48 310

Rated speed

RPM

 3000

Rated torque

Nm

 1 1.27 1.8 2.1 2.5 2.5

Rated current

Amps

 8.5 10.8 14.8 18 19.5 3.3

Output power

Watts

 314 400 565 659 785 785

Peak torque

Nm

 3 3.81 5.4 6.3 7.5 7.5

Torque constant

Nm/A

 0.133 0.133 0.133 0.133 0.138 0.8

Back EMF

V/k RPM

 9.8 9.8 9.8 9.7 10.2 62

Rotor Inertia

Kg.mm2

 120 160 220 260 320 320

Body length(L)

mm

 80 90 105 115 130 130

Mass

kg

 2.3 2.8 3.4 3.8 4.3 4.3

Dimension unit:mm

Flange 86mm Brushless DC Motor 48V 3000RPM 314W 1.0N.m J86BLS80-430A 3phase body length 80mm BLDC motor

Wiring diagram

Flange 86mm Brushless DC Motor 48V 3000RPM 314W 1.0N.m J86BLS80-430A 3phase body length 80mm BLDC motor
