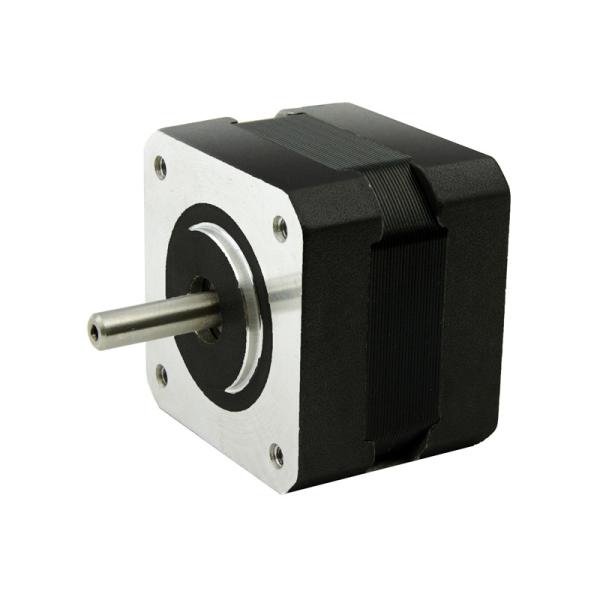

4-lead 2phase NEMA17 Stepper Motor 0.2N.m(29oz-in) 33mm motor length 1.5A
4-lead 2phase NEMA17 Stepper Motor 0.2N.m(29oz-in) 33mm motor length 1.5A
4-lead 2phase NEMA17 Stepper Motor 0.2N.m(29oz-in) 33mm motor length 1.5A
4-lead 2phase NEMA17 Stepper Motor 0.2N.m(29oz-in) 33mm motor length 1.5A
4-lead 2phase NEMA17 Stepper Motor 0.2N.m(29oz-in) 33mm motor length 1.5A
4-lead 2phase NEMA17 Stepper Motor 0.2N.m(29oz-in) 33mm motor length 1.5A
Specifications
Brand Name :
KIMBROUGH
Model Number :
42HS33A41505
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1pc
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
2000pcs per week
Delivery Time :
in stock
Step Angle :
1.8 degree
Holding torque :
0.2N.m(29oz-in)
Current(A/Phases) :
1.5A
Motor length :
33mm
Description

4-lead 2phase NEMA17 Stepper Motor 0.2N.m(29oz-in) 33mm motor length 1.5A

General specifications

Step Angle Accuracy: 5%

Temperature rise: 80°c Max

Ambient temperature: -10°c~+50°c

Insulation resistance: 100MΩ Min 500VDC

Dielectric strength: 500V AC 1minute

Shaft Radial Play: 0.02mm Max(450g-load)

Shaft Axial Play: 0.08mm Max(450g-load)

■Specifications
Model Step Angle (°) Length L(mm) Holding Torque (N.m) Current (A/Phase) Resistance (Ω) Inductance (mH) Rotor inertia (g.cm2) Weight (kg) Shaft diameter (mm) Matched driver
42HS33A41505 1.8 33 0.2 1.5 1.4 1.4 35 0.22 5.0 JB430M
42HS38A41505 38 0.4 1.5 2.3 4.3 54 0.28 5.0
42HS47A41505 47 0.6 1.5 2.2 4.5 68 0.35 5.0
42HS60A41505 60 0.8 1.5 3.0 6.9 102 0.5 5.0

■Dimension Unit:mm

4-lead 2phase NEMA17 Stepper Motor 0.2N.m(29oz-in) 33mm motor length 1.5A

■Frequancy-torque characteristics

4-lead 2phase NEMA17 Stepper Motor 0.2N.m(29oz-in) 33mm motor length 1.5A

■Connections)

4-lead 2phase NEMA17 Stepper Motor 0.2N.m(29oz-in) 33mm motor length 1.5A
