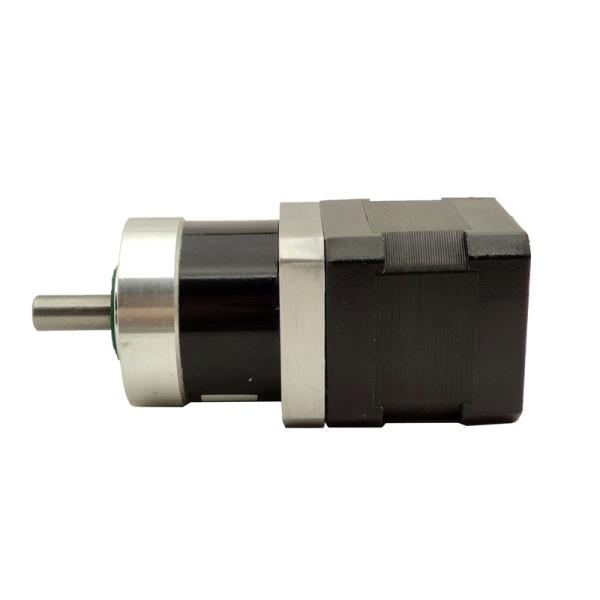

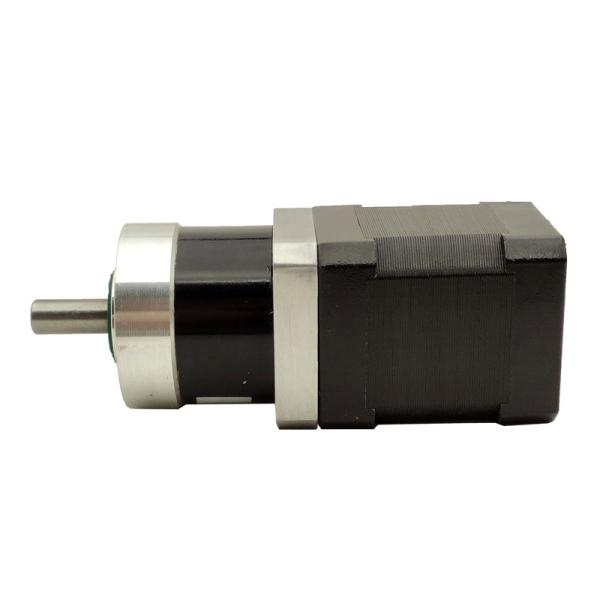

26W/52W/69W 42mm Brushless DC Motor 24V with planetary gearbox Brushless DC planetary geared motor
26W/52W/69W 42mm Brushless DC Motor 24V with planetary gearbox Brushless DC planetary geared motor
26W/52W/69W 42mm Brushless DC Motor 24V with planetary gearbox Brushless DC planetary geared motor
26W/52W/69W 42mm Brushless DC Motor 24V with planetary gearbox Brushless DC planetary geared motor
26W/52W/69W 42mm Brushless DC Motor 24V with planetary gearbox Brushless DC planetary geared motor
26W/52W/69W 42mm Brushless DC Motor 24V with planetary gearbox Brushless DC planetary geared motor
Specifications
Brand Name :
KIMBROUGH
Model Number :
J42BLSPG40-240A, J42BLSPG60-240A, J42BLSPG80-240A
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Supply Ability :
10000pcs per month
Packaging Details :
carton
Output Power :
26W/52W/69W
Description

26W/52W/69W 42mm Brushless DC Motor 24V with planetary gearbox Brushless DC planetary geared motor

Winding type Star
Hall effect angle 120°
Insulation class B
Ambient temperature range -20°C ~ +50°C
Insulation resistance 100MΩMin 500VDC
Dielectric Strength 500VDC 1 minute

Technical data :


Model

Voltage

(VDC)

 Motor Rated Parameters

Motor

Peak

Torque

(N.m)

Torque

Constant

(N.m/A)

Back

EMF

(V/k RPM)

Motor

Rotor

Inertia

(kg.mm2)

 Length(L:mm) Weight(kg)

Speed

(rpm)

Torque

(N.m)

Current

(A)

Power

(W)

 1-stage 2-stage 1-stage 2-stage
J42BLSPG40-240A 24 4000 0.063 1.65 26 0.185 0.035 3.17 5.2 82 92 0.73 0.93
J42BLSPG60-240A 4000 0.125 3.4 52 0.38 0.041 3.13 9.3 102 112 0.88 1.08
J42BLSPG80-240A 4000 0.165 4.5 69 0.55 0.042 3.28 13.4 122 132 1.03 1.23
J42BLSPG100-240A 4000 0.25 6.6 105 0.75 0.0376 2.62 9.6 142 152 1.2 1.4

Planetary gearbox specification:

Technical Data 1 stage 2 stage
Gear ratio 4,5,10 16,20,25,40,50,100
Length L1: mm 42 52
Rated load: Nm ≤15 ≤25
Efficiency: % 95 90
Backlash: arcmin ≤15 ≤25
Rated input speed: rpm 3000 3000
Max input speed: rpm 5000 5000
Safety class: IP 65 65
Lubrication: Life grease lubrication
Noise: dB ≤45 ≤45
Service life: h ~20000 ~20000

Dimension unit:mm

26W/52W/69W 42mm Brushless DC Motor 24V with planetary gearbox Brushless DC planetary geared motor

26W/52W/69W 42mm Brushless DC Motor 24V with planetary gearbox Brushless DC planetary geared motor

Wiring diagram

26W/52W/69W 42mm Brushless DC Motor 24V with planetary gearbox Brushless DC planetary geared motor
