26W/52W/69W 42mm Brushless DC Motor 24V with permanent magnet brake 3phase BLDC motor
26W/52W/69W 42mm Brushless DC Motor 24V with permanent magnet brake 3phase BLDC motor
26W/52W/69W 42mm Brushless DC Motor 24V with permanent magnet brake 3phase BLDC motor
26W/52W/69W 42mm Brushless DC Motor 24V with permanent magnet brake 3phase BLDC motor
26W/52W/69W 42mm Brushless DC Motor 24V with permanent magnet brake 3phase BLDC motor
26W/52W/69W 42mm Brushless DC Motor 24V with permanent magnet brake 3phase BLDC motor
Specifications
Brand Name :
KIMBROUGH
Model Number :
J42BLSB40-240A, J42BLSB60-240A, J42BLSB80-240A
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Supply Ability :
10000pcs per month
Packaging Details :
carton
Output Power :
26W/52W/69W
Description

26W/52W/69W 42mm Brushless DC Motor 24V with permanent magnet brake 3phase BLDC motor

Winding type Star
Hall effect angle 120°
Insulation class B
Ambient temperature range -20°C ~ +50°C
Insulation resistance 100MΩMin 500VDC
Dielectric Strength 500VDC 1 minute

Technical data :


Model

Voltage

(VDC)

 Motor Rated Parameters

Motor

Peak

Torque

(N.m)

Torque

Constant

(N.m/A)

Back

EMF

(V/k RPM)

Motor

Rotor

Inertia

(kg.mm2)

Length

(L:mm)

Weight

(kg)

Brake

Torque

(N.m)

Speed

(rpm)

Torque

(N.m)

Current

(A)

Power

(W)
J42BLSB40-240A 24 4000 0.063 1.65 26 0.185 0.035 3.17 5.2 72 0.53 0.65
J42BLSB60-240A 4000 0.125 3.4 52 0.38 0.041 3.13 9.3 92 0.68
J42BLSB80-240A 4000 0.165 4.5 69 0.55 0.042 3.28 13.4 112 0.83
J42BLSB100-240A 4000 0.25 6.6 105 0.75 0.0376 2.62 9.6 132 1.0

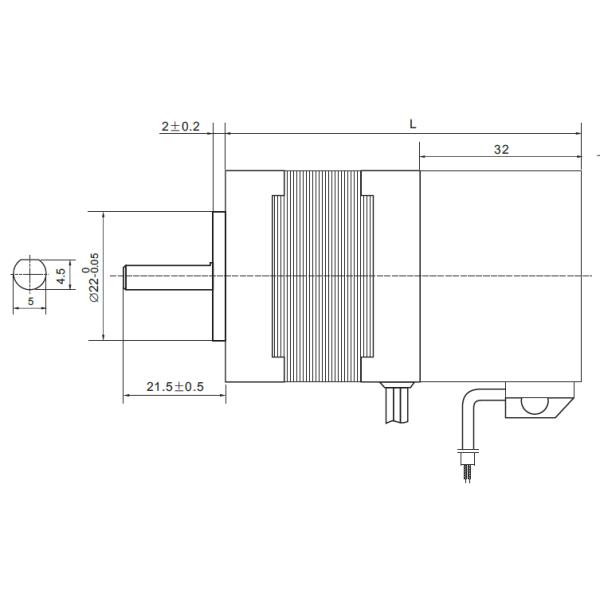

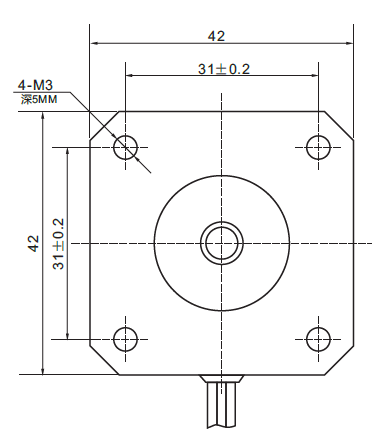

Dimension unit:mm

26W/52W/69W 42mm Brushless DC Motor 24V with permanent magnet brake 3phase BLDC motor

26W/52W/69W 42mm Brushless DC Motor 24V with permanent magnet brake 3phase BLDC motor

Wiring diagram

26W/52W/69W 42mm Brushless DC Motor 24V with permanent magnet brake 3phase BLDC motor
