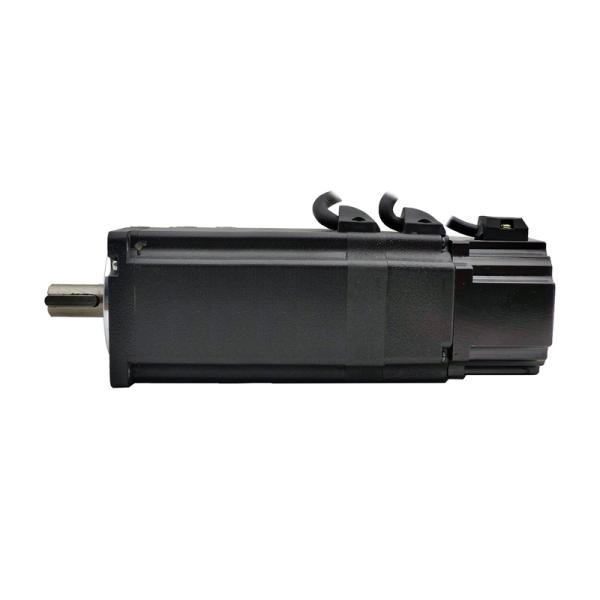

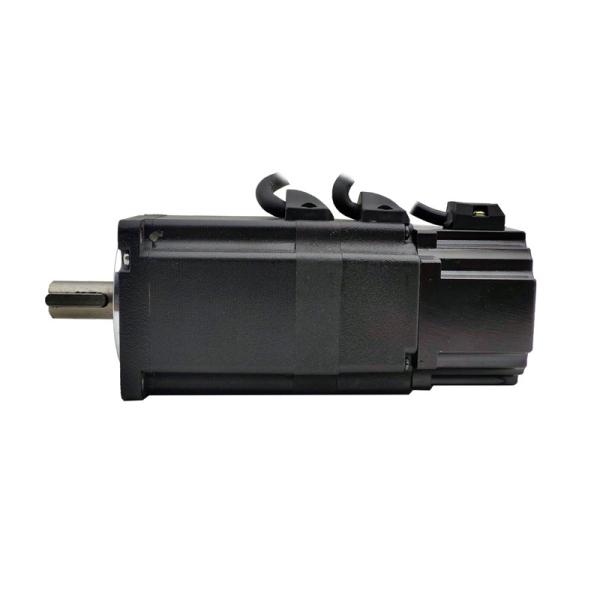

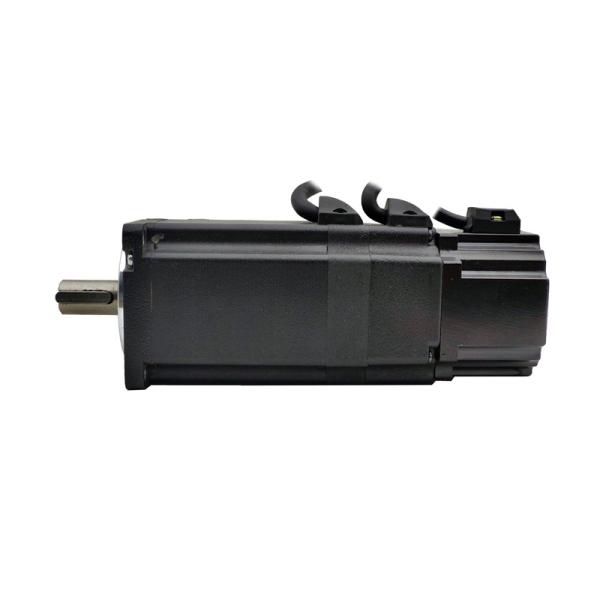

200W/300W/400W 60mm Brushless DC Motor 48V with permanent magnet brake 3phase BLDC motor
200W/300W/400W 60mm Brushless DC Motor 48V with permanent magnet brake 3phase BLDC motor
200W/300W/400W 60mm Brushless DC Motor 48V with permanent magnet brake 3phase BLDC motor
200W/300W/400W 60mm Brushless DC Motor 48V with permanent magnet brake 3phase BLDC motor
200W/300W/400W 60mm Brushless DC Motor 48V with permanent magnet brake 3phase BLDC motor
200W/300W/400W 60mm Brushless DC Motor 48V with permanent magnet brake 3phase BLDC motor
Specifications
Brand Name :
KIMBROUGH
Model Number :
J60BLSB99-430A, J60BLSB120-430A, J60BLSB140-430A
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Supply Ability :
10000pcs per month
Packaging Details :
carton
Output Power :
200W/300W/400W
Description

200W/300W/400W 60mm Brushless DC Motor 48V with permanent magnet brake 3phase BLDC motor

Winding type Star
Hall effect angle 120°
Insulation class B
Ambient temperature range -20°C ~ +50°C
Insulation resistance 100MΩMin 500VDC
Dielectric Strength 500VDC 1 minute

Technical data :

Model

Voltage

(VDC)

 Motor Rated Parameters

Motor

Peak

Torque

(N.m)

Torque

Constant

(N.m/A)

Back

EMF

(V/k RPM)

Motor

Rotor

Inertia

(kg.mm2)

Length

(L:mm)

Weight

(kg)

Brake

Torque

(N.m)

Speed

(rpm)

Torque

(N.m)

Current

(A)

Power

(W)
J60BLSB99-430A 48 3000 0.65 6.5 200 1.95 0.065 4.5 48 137 1.75 1.9
J60BLSB120-430A 3000 0.95 8.8 300 2.85 0.126 9.3 72 158 2.15
J60BLSB140-430A 3000 1.25 11.5 400 3.81 0.127 9.2 96 178 2.55

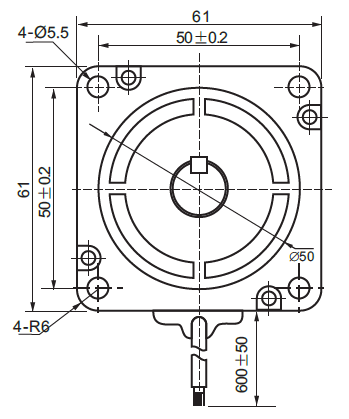

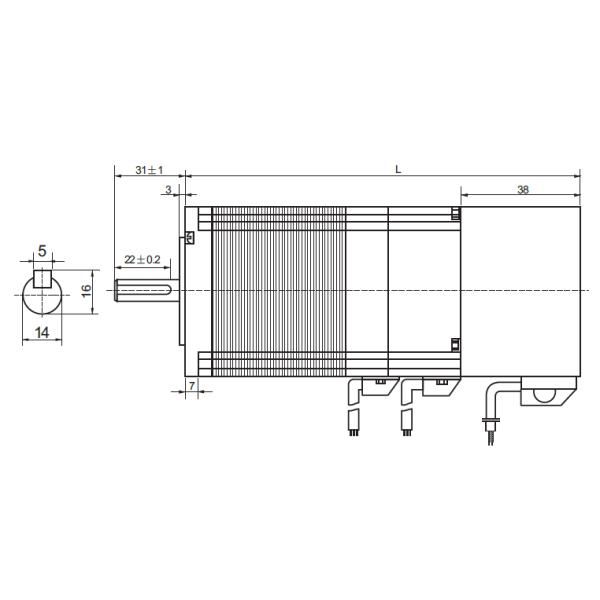

Dimension unit:mm

200W/300W/400W 60mm Brushless DC Motor 48V with permanent magnet brake 3phase BLDC motor

200W/300W/400W 60mm Brushless DC Motor 48V with permanent magnet brake 3phase BLDC motor

Wiring diagram

200W/300W/400W 60mm Brushless DC Motor 48V with permanent magnet brake 3phase BLDC motor
