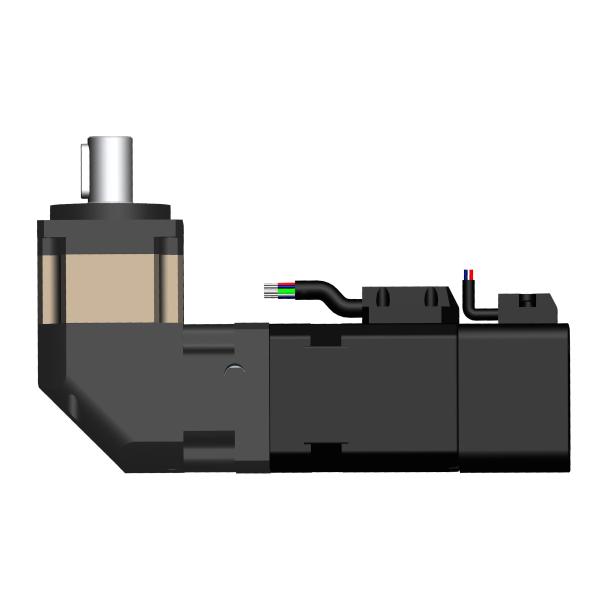

NEMA17 42mm 2phase closed loop stepper motor with right-angle planetary gearbox and permanent magnet brake
NEMA17 42mm 2phase closed loop stepper motor with right-angle planetary gearbox and permanent magnet brake
Specifications
Brand Name :
KIMBROUGH
Model Number :
42HSEZPGB33, 42HSEZPGB38, 42HSEZPGB47, 42HSEZPGB60
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1pc
Payment Terms :
T/T, Paypal, Western union
Supply Ability :
999
Delivery Time :
in stock
Packaging Details :
carton
Description

NEMA17 42mm 2phase closed loop stepper motor with right-angle planetary gearbox and permanent magnet brake

Planetary gearbox specifications

Technical Data 1 stage 2 stage
Reduction ratio 3, 4, 5, 8, 10 12, 16, 20, 25, 32, 35, 40, 56, 64
Length L1: mm 72.2 84.2
Rated load: Nm ≤10 ≤15
Efficiency: % 95 90
Backlash: arcmin ≤10 ≤12
Weight: KG 0.7 0.9
Rated input speed: rpm 3000 3000
Max input speed: rpm 6000 6000
Safety class: IP 65 65
Lubrication: Life grease lubrication Life grease lubrication
Noise: dB ≤58 ≤58
Service life: h ~20000 ~20000

Specifications

Model Length (L:mm)

Motor Holding Torque

(N.m)

Rated Current

(A)

Resistance/Phase

(Ω)

Inductance/Phase

(mH)

Rotor Inertia

(g.cm2)

 Brake Torque (N.m) Weight(kg) Matched Driver
1-stage 2-stage
42HSEZPGB33 155.2 0.2 1.5 1.4 1.4 35 0.65 1.4 1.6 HSE57
42HSEZPGB38 161.2 0.4 1.5 2.3 4.3 54 1.5 1.7
42HSEZPGB47 169.2 0.6 2.5 0.9 1.6 72 1.6 1.8
42HSEZPGB60 182.2 0.8 2.5 1.0 2.4 110 1.65 1.85

Note: Other reduction ratio is acceptable, the brake is DC24V power-off brake, other voltage can be customized as required.

Dimension unit:mm

NEMA17 42mm 2phase closed loop stepper motor with right-angle planetary gearbox and permanent magnet brake

NEMA17 42mm 2phase closed loop stepper motor with right-angle planetary gearbox and permanent magnet brake

Encoder Connections

RED WHITE BLACK BLUE YELLOW GREEN
5V 0V A+ A- B+ B-

Motor connection

NEMA17 42mm 2phase closed loop stepper motor with right-angle planetary gearbox and permanent magnet brake
