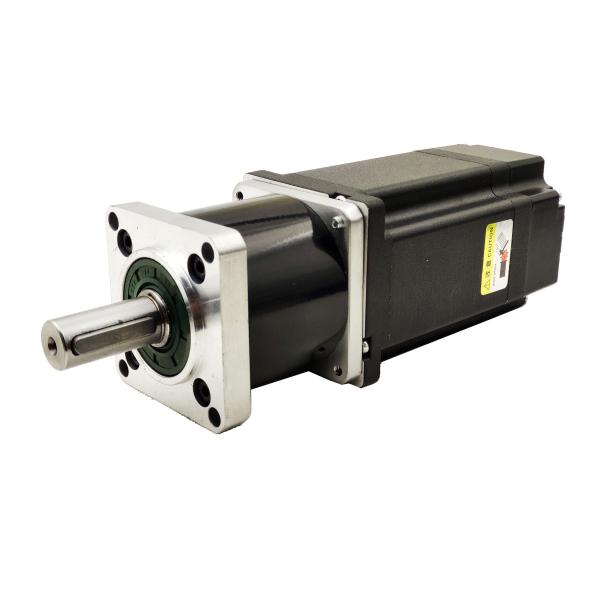

NEMA24 60mm 2phase closed loop stepper motor with planetary gearbox/ stepper motor with encoder and planetary reducer
NEMA24 60mm 2phase closed loop stepper motor with planetary gearbox/ stepper motor with encoder and planetary reducer
Specifications
Brand Name :
KIMBROUGH
Model Number :
60HSEPG58, 60HSEPG65, 60HSEPG78, 60HSEPG84, 60HSEPG102, 60HSEPG112, 60HSEPG125
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1pc
Payment Terms :
T/T, Paypal, Western union
Supply Ability :
999
Delivery Time :
in stock
Packaging Details :
carton
Description

NEMA24 size 60mm 2phase closed loop stepper motor with planetary gearbox/ stepper motor with encoder and planetary reducer

Planetary gearbox specifications

Technical Data 1 stage 2 stage
Reduction ratio 4, 5, 10 16, 20, 25, 40, 50, 100
Length L1: mm 53 70
Rated load: Nm ≤25 ≤40
Efficiency: % 95 90
Backlash: arcmin ≤15 ≤25
Weight: KG 0.8 1.1
Rated input speed: rpm 3000 3000
Max input speed: rpm 5000 5000
Safety class: IP 65 65
Lubrication: Life grease lubrication Life grease lubrication
Noise: dB ≤45 ≤45
Service life: h ~20000 ~20000

Specifications

Model Length(L:mm)

Motor Holding Torque

(N.m)

Rated Current

(A)

Resistance/Phase

(Ω)

Inductance/Phase

(mH)

Rotor Inertia

(g.cm2)

 Weight(kg) Matched Driver
1-stage 2-stage 1-stage 2-stage
60HSEPG58 136 153 1.7 5.8 0.48 1.1 300 1.95 2.25 HSE57
60HSEPG65 143 160 2.1 5.8 0.53 1.2 570 2.05 2.35
60HSEPG78 156 173 2.6 5.8 0.56 1.1 620 2.25 2.55
60HSEPG84 162 179 3.0 5.8 0.5 1.3 840 2.35 2.65
60HSEPG102 180 197 4.5 5.8 0.75 2.4 1000 2.6 2.9
60HSEPG112 190 207 4.8 5.8 0.69 2.11 1200 2.8 3.1
60HSEPG125 203 220 5.5 5.8 1.5 6.9 1370 3.1 3.4

Note: Other reduction ratio is acceptable, it can be customized according to customers’ requirements.

Dimension unit:mm

NEMA24 60mm 2phase closed loop stepper motor with planetary gearbox/ stepper motor with encoder and planetary reducer

NEMA24 60mm 2phase closed loop stepper motor with planetary gearbox/ stepper motor with encoder and planetary reducer

Encoder Connections

RED WHITE BLACK BLUE YELLOW GREEN
5V 0V A+ A- B+ B-

Motor connection

NEMA24 60mm 2phase closed loop stepper motor with planetary gearbox/ stepper motor with encoder and planetary reducer
