Full Color SMD Indoor LED Displays , Commercial led screen wall Advertisement
Full Color SMD Indoor LED Displays , Commercial led screen wall Advertisement
Full Color SMD Indoor LED Displays , Commercial led screen wall Advertisement
Full Color SMD Indoor LED Displays , Commercial led screen wall Advertisement
Specifications
Brand Name :
Jinhe
Model Number :
P3
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1 sqm
Payment Terms :
T/T, Western Union
Delivery Time :
10-30 workingdays
Packaging Details :
Wooden Case, Flight Case
Module Size :
192mm*192mm
Pixel Pitch :
3mm
Color :
full color
Physical Density :
111111/m2
Driving Mehtod :
Constant current 1/32scan
LED Encapsulation :
Black SMD2121
Warranty :
2 years
Description

Full Color SMD Indoor LED Displays , Commercial led screen wall Advertisement

Features:

1. First-class LED chip: Epistar from Taiwan.

2. With pure golden wire connection in LED.

3. Grand A row material for module frame and mask.

4. 4 layers PCB and copper plating thickness > 18mil.

5. Ag alloy solder paster to ensure good soldering on PCB.

6. Stainless steel screws when assembly.

7. Easy Installation & User-friendly software.

8. Two years warranty.

Parameters:

Technical parameters UNIT parameters Values
Pixel pitch mm 3
Panel size mm L192*H192*T14
Physical density /m2 111111
Pixel configuration R/G/B 1,1,1
Driving method Constant current 1/32scan
LED Encapsulation SMD Black SMD2121
Display resolution DOTS 64X64=4096
LED Parameter

MCD

NM

R:82-102 G:245-305 B:45-56

R:621-625 G:524-528 B:468-472
Module working voltage VDc 5

Viewing angle Deg. 120
Driving device ICN2027/SM16016SC
Frame Frequency Hz ≥60
Refresh frequency Hz ≥600
Equilibrium brightness cd/ m2 750-1000
Working environment temperature 0C -10~60
Working environment humidity RH 10%～70%
Colour temperature ≥10000K
Gray scale/color ≥16.7M color
Mean free error time Hours ＞5000
Life Hours 100000
Lamp failure frequency ＜0.0001

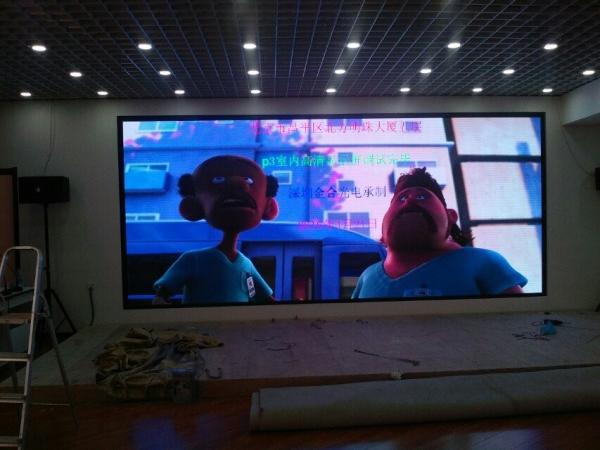

Project:

Full Color SMD Indoor LED Displays , Commercial led screen wall Advertisement

Full Color Tube Led Display Applications:

High resolution, can be used for high-end big screen TV, suitable fro interio home theatre system, compared with conventional TV, it has a larger screen, more bright beautiful color and more shocking display effect. I can be acted as a high-end indoor screens at the same time, used in the various types of indoor places, such as high-end conference rooms, families, halls, cinemas, theatres, lounge, stations and so on.

After sale service:

1. Prompt reply for your enquiry

2. Customized design, OEM &ODM are welcomed

3. All kinds of trade items are accepted

4. Experienced R&D staffs to answer your professional question in fluent English

5. Sample can be offered

Basic promise from Jinhe:
A: Full automatic production to control our high quality, best color consistency and get better performance.
B: Energy saving, low power consumption and long lifespan 100,000 hours (about 10 years).
C: We guarantee that the equipment we provide are brand new, complete and unused.
D: Good heat dissipation capability and high waterproof because of the unique design of vent fan (like shutter).
E: Our quality control throughout every process from materials-production- test-package-delivery
