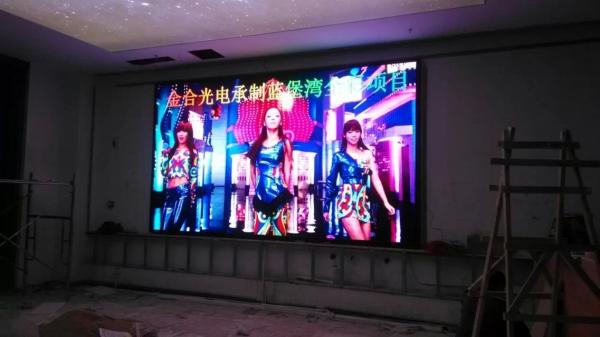

SMD P6 Indoor LED Displays Full Color , LED Video Display Panels Wide View Angle
SMD P6 Indoor LED Displays Full Color , LED Video Display Panels Wide View Angle
SMD P6 Indoor LED Displays Full Color , LED Video Display Panels Wide View Angle
SMD P6 Indoor LED Displays Full Color , LED Video Display Panels Wide View Angle
Specifications
Brand Name :
Jinhe
Model Number :
P6
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1 square meter
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2,000 square meters per month
Delivery Time :
15 working days after receiving deposit
Packaging Details :
Packed in road cases
Usage :
Indoor
Color :
Full color
Display Function :
Video
Driving method :
1/16
Module size :
384 * 192
Brightness :
＞2500nits
Description

SMD P6 Indoor LED Displays Full Color , LED Video Display Panels Wide View Angle

1. Clear picture without flicker and distortion

2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive

3. Low consumption, stable performance, highly durable

4. High brightness & broad viewing angle, brightness can be adjusted automatically or manually

5. 2 years warranty, easy to install & maintenance

6. CE, ROHS, FCC

7. MORE SPECIFICATIONS :

Description Technical parameter of led display indoor
Unit module Module size 384*192mm
Pixel pitch 6mm
Pixel density 27777dots/m2
Pixel configuration 1R1G1B
Led specification SMD
Pixel resolution W:32dots*H:32dots
Cabinet Dimension 768mm*768mm*100mm
Quantities of module 16pcs
Power supply 2pcs
Thermal discharge Fan*2pcs
Total weight 45kg/m2
Best viewing angle 6-300m
Temperature Storage: -35°C~+85°C
Working: -35°C~+85°C
Thickness 10cm can adjustable
Remarks: cabinet size can changed, upon project need.
Power Working voltage AC220V/110V±10%
Average power consumption 100-180W
Max. Power consumption ≤350W/sqm
Current ≤20mA(single LED)
Control system CPU Pentium4 or above
Operating system WIN98/2000/NT/XP
Control method Synchronization
Main technical parameter Driving device 1/16scan
Drive type Constant Current driver IC
Refresh frequency ≥300Hz
Grey scale/colors 256 levels of each color(R/G/B)/16.7M color
Brightness of white balance More than 1500 cd/sqm
Brightness adjustment 256 levels of each color(R/G/B)by software
Operating ambient humidity 10%--95%
Video signal PAL/NTSC
Control system DVI display card+full color controller card
MTBF ≥10,000hours
Life span ≥100,000hours
Flatness Tolerance of interpixel ≤0.3mm
Tolerance of modules clearance≤0.6mm
Power switch Automatic switch
Display mode 768*768
Communication distance

Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.

Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM
Software LED studio

FAQ

1) Warranty ?

All product from Jin Hon light has 12 months warranty.

We will send spare parts for free product got problems ( Bulbs in not included ).

2) How to place order ?

We will send you official invoice if product and packing menthod is confrimed .

All price we quote is Base on FOB Guangzhou , we could also arrange shipping.

Jin hon light require 30% - 50% of deposit to star order , 100% balance before shipping .

Payment method : T/T , Western union , Paypal .

So Confrim order --- deposit to star -- Produce -- Balance before shipping -- Get order.
