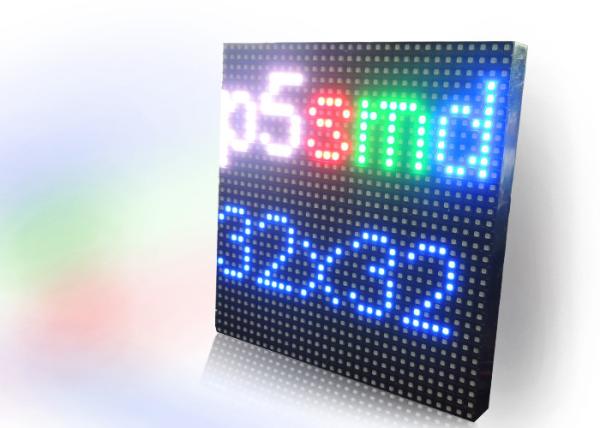

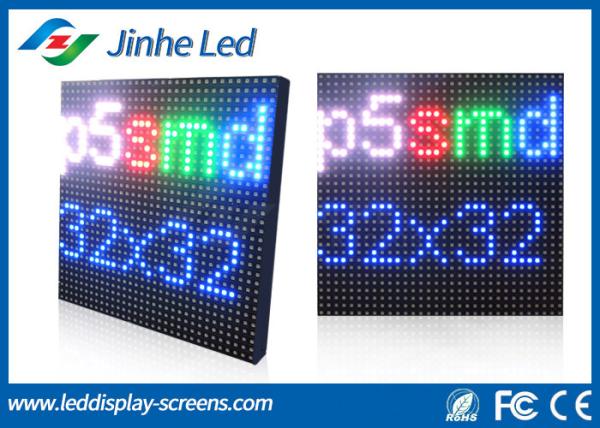

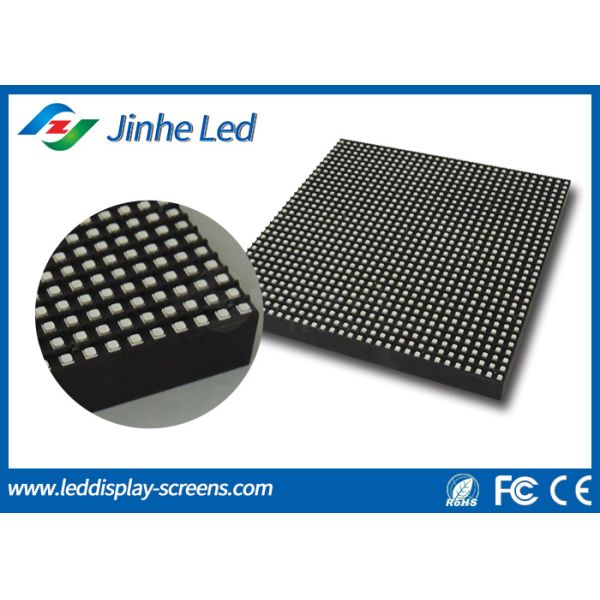

Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip
Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip
Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip
Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip
Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip
Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip
Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip
Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip
Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip
Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip
Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip
Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip
Specifications
Brand Name :
Jinhe
Model Number :
P6
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1 square meter
Price :
Negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
15 working days after receiving the deposit
Packaging Details :
Wooden case , flight case
Pixel Pitch :
6mm
Module Size :
192 * 192
Pixel Density :
27777dots / ㎡
Brightness :
≥ 7000nits
Led Chip :
Epistar
Warranty :
Two years
Description

Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip

Specifications:

※ Module parameter
Technical parameters UNIT Parameters
Pixel pitch MM 6
Panel size MM L192XH192X18
Physical density /M2 27777
Pixel configuration R/G/B 1,1,1
Driving method Constant current 1/8scan or 1/4scan
LED Encapsulation SMD 3535
Display resolution DOTS 32X32=1024ots
Module port HUB75－B
Module working voltage VDC 5
Module consumption W 36
※ Screen parameter
Viewing angle Deg. H120 V120
Option distance M 8-120
Maximum power W/ M2 970
Frame Frequency HZ ≥60
Refresh frequency HZ ≥1500
Equilibrium brightness CD/ M2 ≥6500
Working environment temperature 0C -10~60
Working environment humidity RH 10%～70%
Display working voltage VAC AC46～54HZ,220V±15%/110V±15%
Colour temperature 9500K-11500K
Gray scale/color ≥16.7M color
Input signal RF S-Video RGB etc
Control system PCTV nonlinearity card,DVI display card,Linsn control system
Mean free error time HOURS ＞5000
Life HOURS 100000
Lamp failure frequency ＜0.0001
Antijam IEC801
Safety GB4793
Resist the electricity 1500V last 1min No breakdown
IP rating The back IP40,The front IP50
Cabinet size mm 768*768 (can be customized)

Programmable Full Color / Single Color LED Module SMD 3535 With Epistar Chip

Features:

1. A flexible way of presenting your messages and unique animated graphics

2. High quality live video feed or video playback

3. High resolution digital display

4. Manufactured with high quality LEDs which have greater colour stability

5. Full colour displays have an infinite colour depth due to each pixel having a high bit digital signal source.

6. Complete versatility and unlimited potential for advertising or promotional campaigns.

7. Programmed by computer to show the content you want.

8. 5mm,6mm, 8mm, and 10mm pitch for outdoor smd, and 8mm, 10mm, 16mm for outdoor dip.

9. Ideal for applications in advertising, promotions, shopping malls, traffic control, concerts, sporting events.

Applications:

Business Organizations supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms
Entertainments Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course

Warranty:
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.

Technology Training
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.

Documents and Certification:
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.

CAD Drawing and Fixing
1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2. We will send our engineers to your place if we are expected after our negotiation.

Additional service:
We provide you the forwarding information, and some other information ,such as flight box, structure information for your reference for free.

Welcome to your inquiry! :-)
