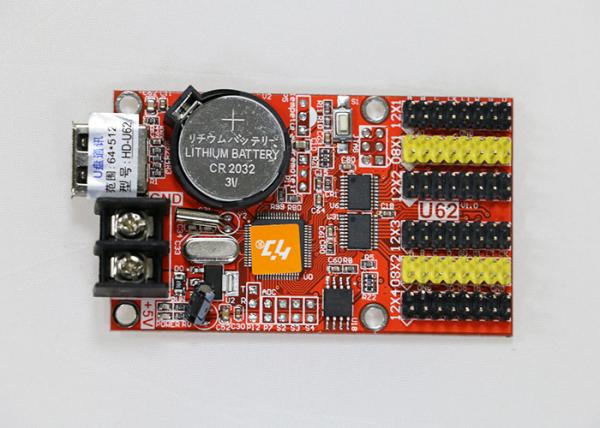

Outdoor Scrolling Message LED Display Control Board With USB Port
Outdoor Scrolling Message LED Display Control Board With USB Port
Specifications
Brand Name :
Huidu
Model Number :
HD-U62
Certification :
CE,RoHS
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Supply Ability :
2000 sets per month
Delivery Time :
5-8 working days
Packaging Details :
carton case
Usage :
Outdoor/ Indoor/ Semi-outdoor
Display Function :
for single/dual color display
Pixels :
64*2048 for single color; 32*384 and 16*768 for dual color
Screen Dimension :
640*128
Scan mode :
Static, 1/2, 1/4, 1/8 and 1/16 common modes
Program quantity :
200 programs are available, switched by buttons or remote control
Description

Outdoor Scrolling Message LED Display Control Board With USB Port

1. Features of HD-U62 single dual color USB port LED scrolling message card :

1). Support all languages(Software :HD2016)
2). Support 7 color effects and 64 colors Gray level
(HD-U62/63/64)
3). Add Animation,Background ,Smart setting ,Area overlapping.Showing
Text,Photo,Time, Clock etc
4). Add Count down/up,Count by Button;Digital Count
5). Add Text Rotation of 90°,180°, 270° for Vertical display
6). Add payment collection function
7). Updated program by U-disk
8). Support 1000pcs Programs and 8 Districts
9). More than 200 types showing effects
10). Support Second develop SDK
11). More high brightness,more moving speed ,more refresh
12). Support Remote function,temperature,humidity,brightness etc.
Remoter can select1-999 Programs
13). U62/U63/U64 support Pharmacy cross signs

2.The way to update program via U disk (common FAT system U-disk):

3. Dimension Chart of HD-U62 single dual color USB port LED scrolling message card:

4. Software HD2016 Application of HD-U62 single dual color USB port LED scrolling message card :

5. LED display controller Exspansion function accessories:

6. LED display coontroller application case:

7. Beside fitting common single/dual/tri color LED module, U62 also fit Pharmacy cross signs, details connection ways as below:


Jinhe After Services:

• Telephone investigation: Our after sales team will call the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.

• Free guarantee repair (including labor and material); free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.

• Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.

• Spare parts: necessary spare parts are provided together with products to customers.

• Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.

• Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.

• Site instruction service of installation is available.
