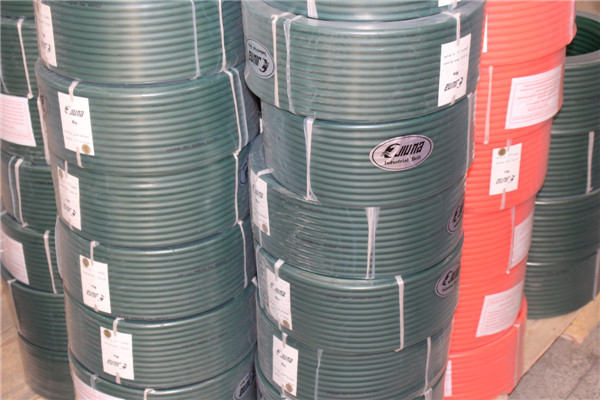

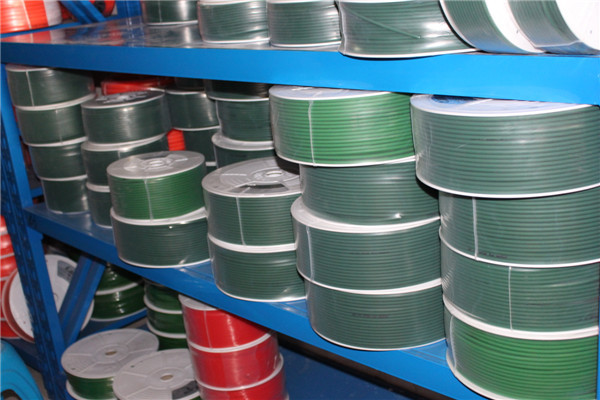

stretching rate 1.5-3% Polyurethane Round Conveyor Belt / Power Transmission Belts
stretching rate 1.5-3% Polyurethane Round Conveyor Belt / Power Transmission Belts
stretching rate 1.5-3% Polyurethane Round Conveyor Belt / Power Transmission Belts
stretching rate 1.5-3% Polyurethane Round Conveyor Belt / Power Transmission Belts
stretching rate 1.5-3% Polyurethane Round Conveyor Belt / Power Transmission Belts
stretching rate 1.5-3% Polyurethane Round Conveyor Belt / Power Transmission Belts
stretching rate 1.5-3% Polyurethane Round Conveyor Belt / Power Transmission Belts
stretching rate 1.5-3% Polyurethane Round Conveyor Belt / Power Transmission Belts
Specifications
Brand Name :
jiuna
Model Number :
dia 3mm-18mm
Certification :
ROHS
Place of Origin :
wuxi city of china
MOQ :
11 rolls
Payment Terms :
T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability :
96.000 meters per Month
Delivery Time :
Within 7 working days After receipt of your deposit
Packaging Details :
Inner packing is plastic film .outer packing is carton
hardness :
85A-90A
stretching rate :
1.5-3%
material :
PU
color :
green
length :
30m/roll
Type :
PU round belt
Description

Polyurethane Round Conveyor Belt / Power Transmission Belts

Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .

The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .

Wuxi jiunai polyurethane products co.,LTD is located in wuxi city shitang bay mountain luoshe town industrial park, near to 312 national road, trafifc is very convenient . Company has the international leading level of polyurethane products production line, the introduction of international advanced technology and testing, testing equipment. In the production scale ,production process, techncal strength in the same industry leading position . Ls a research and development, the production of polyurethane series products of leading domestic, top professional manufacturers,with strong teachnology research and development and production capacity

Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

In

mm

%

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30

stretching rate 1.5-3% Polyurethane Round Conveyor Belt / Power Transmission Beltsstretching rate 1.5-3% Polyurethane Round Conveyor Belt / Power Transmission Belts
