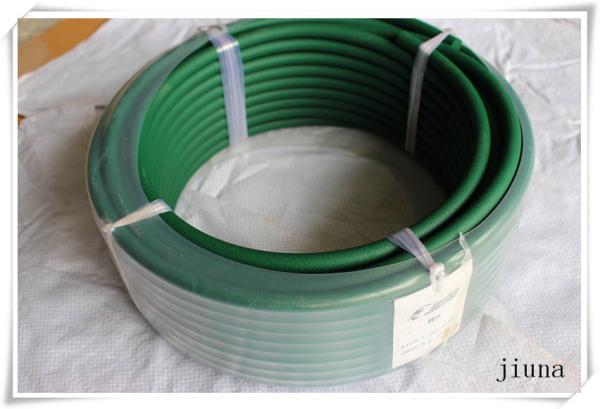

Green Urethane Polyurethane Round Belt For Textile , 30m / roll
Green Urethane Polyurethane Round Belt For Textile , 30m / roll
Green Urethane Polyurethane Round Belt For Textile , 30m / roll
Green Urethane Polyurethane Round Belt For Textile , 30m / roll
Green Urethane Polyurethane Round Belt For Textile , 30m / roll
Green Urethane Polyurethane Round Belt For Textile , 30m / roll
Green Urethane Polyurethane Round Belt For Textile , 30m / roll
Green Urethane Polyurethane Round Belt For Textile , 30m / roll
Specifications
Brand Name :
Jiuna
Model Number :
Diameter 2mm~20mm
Certification :
ROHS
Place of Origin :
China
MOQ :
10rolls
Payment Terms :
T/T, 50% payment in advance ,50% balance before shipment
Supply Ability :
96.000 meters per Month
Delivery Time :
Within 5 working days After receipt of your deposit
Packaging Details :
Inner packing is plastic film .outer packing is carton .
Hardness :
85 shore A
Color :
Dark Green
Material :
PU
length :
30m/roll
stretching rete :
1.5-3%
type :
PU round belt
Description

Green Urethane Polyurethane Round Belt For Textile , 30m / roll

Polyurethane Urethane Round Belt For Textile

Items No. φ

least radius of gyration

stretch rate

Maximum tensile rate

Hardness

length of rolled

DIA

(mm)

In

mm

Stretching rate

Kg

Lbs

Hardness

(A)

Roll

(m)

2mm

0.79

20

1.5-3%

0.3

0.7

90

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

85

200

5mm

1.57

40

1.5-3%

2.0

4.3

85

100

6mm

1.97

50

1.5-3%

3.2

7.0

85

100

7mm

2.17

55

1.5-3%

4.1

9.0

85

100

8mm

2.56

65

1.5-3%

5.0

11.0

85

100

9mm

2.95

75

1.5-3%

6.8

15.0

85

50

10mm

2.95

75

1.5-3%

7.7

17.0

85

50

12mm

3.94

100

1.5-3%

12.2

27.0

85

30

15mm

4.72

120

1.5-3%

17.7

39.0

85

30

18mm

5.71

145

1.5-3%

25.4

56.0

85

30

20mm

6.30

160

1.5-3%

31.3

69.0

85

30

These PU Round Belts also feature high resistance to wear & tear that enables them to be used for more and more applications by wide range of industries.

Features:
* These can be easily welded in situations using simple equipment and there is no need to dismantle
* Their flexibility enables successful repairs to be carried out immediately & avoids stopping production
* Stocks are reduced & simplified as only one roll is required for each cross-section
* These can be instantly adapted to all problems by lengthening, shortening as well as modifying as required
* As they can be easily welded, it is often possible to repair drive round, II V II or flat belts that have been damaged
* All off-cuts are useable
* These provide great freedom in designing conveyors & selecting spacing
* The various coefficients of friction allow wide choice to suit problems to be solved as well as provide suitable carrying characteristics for products being conveyed

Green Urethane Polyurethane Round Belt For Textile , 30m / rollGreen Urethane Polyurethane Round Belt For Textile , 30m / roll
