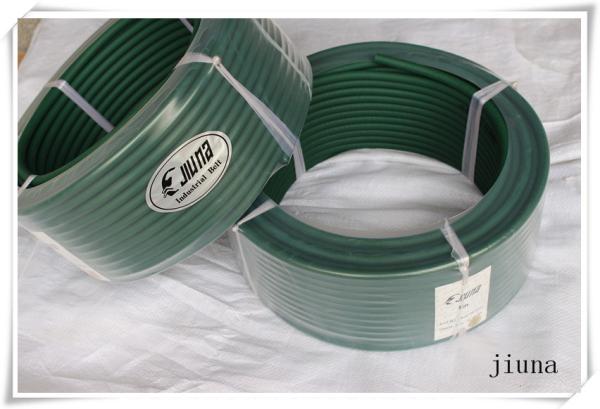

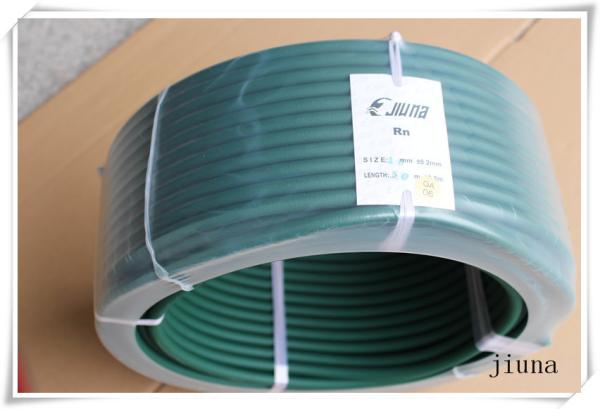

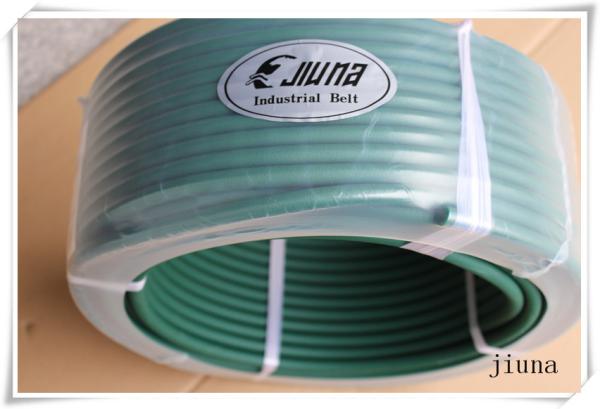

Environmental Pu Converyor Round Belt 10mm Hardness 85A for Industry
Environmental Pu Converyor Round Belt 10mm Hardness 85A for Industry
Environmental Pu Converyor Round Belt 10mm Hardness 85A for Industry
Environmental Pu Converyor Round Belt 10mm Hardness 85A for Industry
Environmental Pu Converyor Round Belt 10mm Hardness 85A for Industry
Environmental Pu Converyor Round Belt 10mm Hardness 85A for Industry
Environmental Pu Converyor Round Belt 10mm Hardness 85A for Industry
Environmental Pu Converyor Round Belt 10mm Hardness 85A for Industry
Specifications
Brand Name :
jiuna
Model Number :
Diameter 2mm-20mm
Certification :
ROHS
Place of Origin :
china
MOQ :
10 rolls
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100.000 meters per Month
Delivery Time :
Within 5 working days After receipt of your deposit
Packaging Details :
Inner packing is plastic film .outer packing is carton
hardness :
85A
color :
green
stretching rate :
1.5-3%
Type :
PU round belt
material :
PU
length :
400m/roll 300m/roll 200m/roll 100m/roll 30m/roll
ensile Strength :
55N/mm2
Main function :
Drive,transmission,
Description

Industrial 12mm Polyurethane Round Belt Orange or Green for Packing Machine


Products introduction:
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.
Polyester product has good wear resistance, its wear resistance is 3.5 times of common plastic and rubber.

Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

In

mm

%

Kg

Lbs

Shore( A)

Length of rolled
( m )

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30


Service commitment:
“Quality for keeping going ,Credit to win the world”
