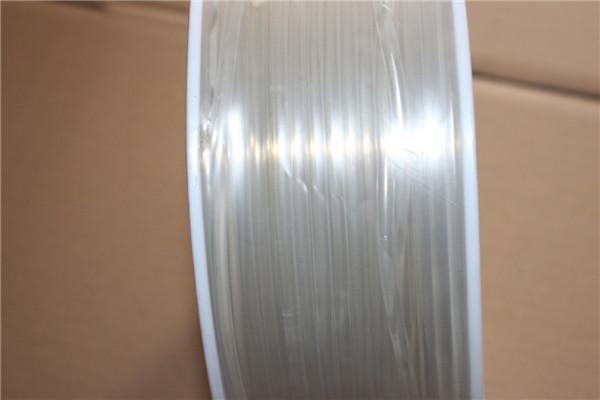

White Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission
White Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission
White Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission
White Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission
White Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission
White Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission
White Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission
White Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission
Specifications
Brand Name :
jiuna
Model Number :
diamter 3mm-20mm
Certification :
ROHS
Place of Origin :
wuxi city of china
MOQ :
2000m
Payment Terms :
T/T, Western Union
Supply Ability :
96.000 meters per Month
Delivery Time :
Within 7 working days After receipt of your deposit
Packaging Details :
nner packing is plastic film .outer packing is carton
color :
any color
material :
PU
hardness :
78A-98A
heat-resistant moderate temperature :
-50 ℃ to + 85 ℃
stretching rate :
1.5-3%
tensile rate :
0.7-69 Lbs
Description

Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission

Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

 In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)
2 0.79 20 1.5-3% 0.3 0.7 90 400
3 0.98 25 1.5-3% 0.7 1.6 90 400
4 1.38 35 1.5-3% 1.2 2.7 85 200
5 1.57 40 1.5-3% 2.0 4.3 85 100
6 1.97 50 1.5-3% 3.2 7.0 85 100
7 2.17 55 1.5-3% 4.1 9.0 85 100
8 2.56 65 1.5-3% 5.0 11.0 85 100
9 2.95 75 1.5-3% 6.8 15.0 85 50
10 2.95 75 1.5-3% 7.7 17.0 85 50
12 3.94 100 1.5-3% 12.2 27.0 85 30
15 4.72 120 1.5-3% 17.7 39.0 85 30
18 5.71 145 1.5-3% 25.4 56.0 85 30
20 6.30 160 1.5-3% 31.3 69.0 85

30

Details:

(1)Thermoplastic polyurethane material, easy to be melted jointed

(2)Reinforced by Polyester Cord or Steel Cord

(3)Temperature range -35°C - 80°C

(4)Shore A hardness range 80A - 98A

(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.

(6)Round Belt:

Round Belt Dia. is from 2mm to 30mm

Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely

Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

.White Tear Resistance Polyurethane PU Round Belt Rough Surface For TransmissionWhite Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission
