90A Profile A -13 B -17 C -22 Super Grip Belt Red Urethane V Belts 30 Meter / Roll
90A Profile A -13 B -17 C -22 Super Grip Belt Red Urethane V Belts 30 Meter / Roll
90A Profile A -13 B -17 C -22 Super Grip Belt Red Urethane V Belts 30 Meter / Roll
90A Profile A -13 B -17 C -22 Super Grip Belt Red Urethane V Belts 30 Meter / Roll
90A Profile A -13 B -17 C -22 Super Grip Belt Red Urethane V Belts 30 Meter / Roll
90A Profile A -13 B -17 C -22 Super Grip Belt Red Urethane V Belts 30 Meter / Roll
90A Profile A -13 B -17 C -22 Super Grip Belt Red Urethane V Belts 30 Meter / Roll
90A Profile A -13 B -17 C -22 Super Grip Belt Red Urethane V Belts 30 Meter / Roll
Specifications
Brand Name :
Jiuna
Model Number :
A-13 ,B-17 ,C-22
Certification :
ROHS
Place of Origin :
China
MOQ :
600 Meter
Payment Terms :
T/T, 50% payment in advance ,50% balance before shipment
Supply Ability :
96.000 meters per Month
Delivery Time :
Within 5 working days After receipt of your deposit
Packaging Details :
Inner packing is plastic film .outer packing is carton
Export port :
shanghai
Factory :
Wuxi city
Hardness :
85 shore A ~90 shore A
length :
30 meter /roll
type :
Super grip belt
color :
Red V belt green top PVC belt
Material :
V belt is PU top belt is PVC
surface :
rough
Description

90A Profile A -13 B -17 C -22 Super Grip Belt Red Urethane V Belts 30 Meter / Roll

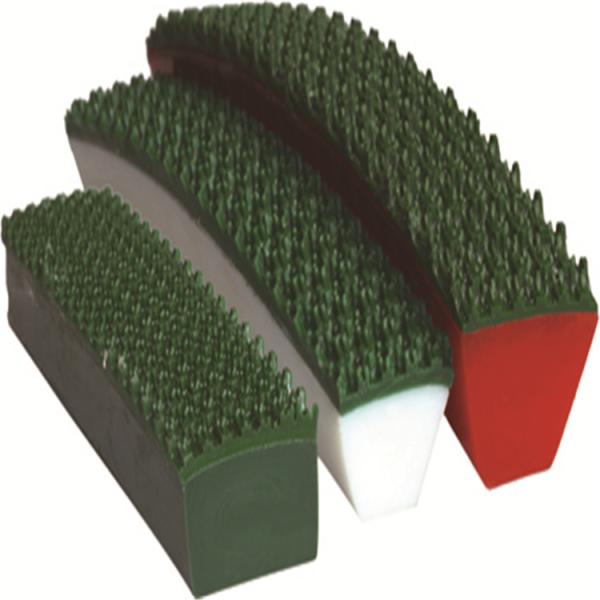

Super grip Belt Feature :

· Profile shape: Vee

· Profile size: A/13, B/17, C/22

· Reinforcement: None

· Color: Green, Red

· Compliancy: RoHS

· Durometer: 80A, 90A

· Material: Polyurethane, PVC Top Surface

· Special Feature: PVC Grip Top Surface

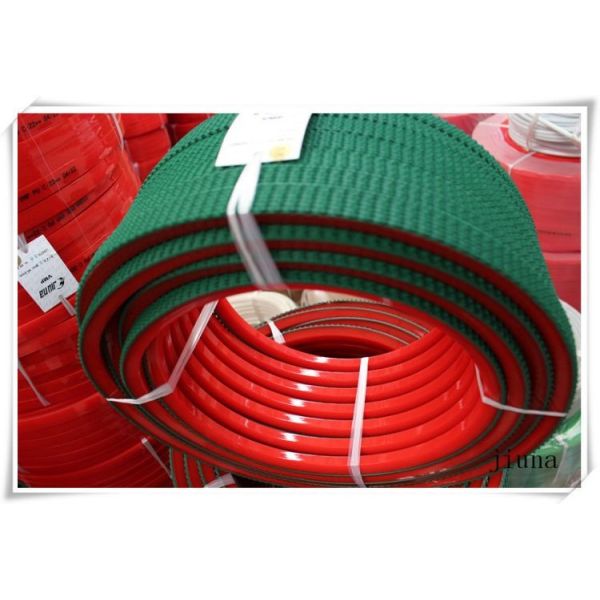

· Package Length: 30meter /roll

· Easily welded endless vee belt .

Vee-Belt Application :

· Widely used in conveying slippery environments,

· Up steep inclines conveying industrial .

90A Profile A -13 B -17 C -22 Super Grip Belt Red Urethane V Belts 30 Meter / Roll

Specification

X(mm)

H(mm)

Z(mm)

M/rolls

reinforced

arabesquitic

A

13

8

3.5

30

·

·

B

17

11

3.5

30

·

·

C

22

14

3.5

30

·

·

D

32

19

3.5

30

·

·

M

8

4

50

Z

10

5

3.5

50

·

·

Products introductions :

Super grip belt are ideally suited for applications where conveying in slippery environments, up

steep inclines, or moving easily damaged products is more important than abrasion resistance.

Conveying applications that require the elasticity of an unreinforced V-belt combined with a super

grip surface. PU Vee Super Grip with top PVC surface is soft and tacky enough that it won’t damage

your precious cargo while giving you the grip that you need. The ultra-high grip material is produced

with an extremely compliant pattern

Service commitment:

“Quality for keeping going ,Credit to win the world” www.polyurethane-round-belt.com/

90A Profile A -13 B -17 C -22 Super Grip Belt Red Urethane V Belts 30 Meter / Roll90A Profile A -13 B -17 C -22 Super Grip Belt Red Urethane V Belts 30 Meter / Roll90A Profile A -13 B -17 C -22 Super Grip Belt Red Urethane V Belts 30 Meter / Roll
