Polyurethane Pu Conveyor Belt Skirting Wear Resisting 65-95 A Hardness
Polyurethane Pu Conveyor Belt Skirting Wear Resisting 65-95 A Hardness
Polyurethane Pu Conveyor Belt Skirting Wear Resisting 65-95 A Hardness
Polyurethane Pu Conveyor Belt Skirting Wear Resisting 65-95 A Hardness
Polyurethane Pu Conveyor Belt Skirting Wear Resisting 65-95 A Hardness
Polyurethane Pu Conveyor Belt Skirting Wear Resisting 65-95 A Hardness
Specifications
Brand Name :
jiuna
Model Number :
2mm-20mm
Certification :
iso9001:2015
Place of Origin :
China
MOQ :
10rolls
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
7working days
Packaging Details :
plastic reel and carton
Material :
Polyurethane
Hs cord :
3926909090
Color :
Red, Yellow, Green, Orange, White or Customized
Application :
Stabilise And Guide Curved Belts
Hardness :
60 A-85 A
Original :
China
Applicable Temperature :
-30℃~80℃
Packing :
Plastic Reel And Carton
Description

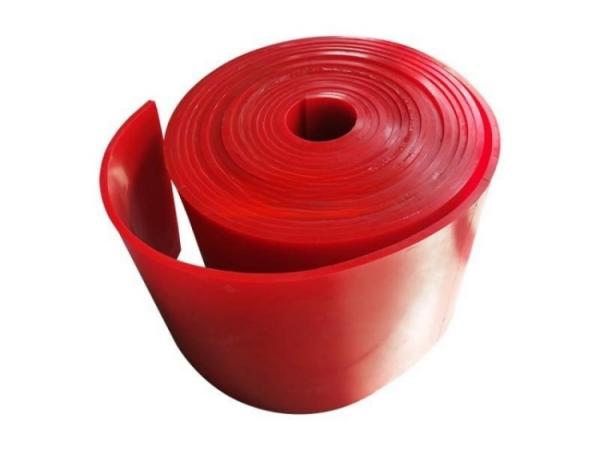

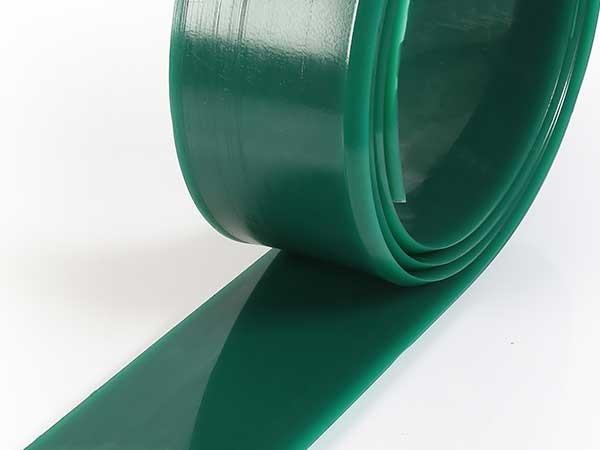

Polyurethane Conveyor Belt Skirting

Urethane conveyor belt skirting as a sealing strip for conveyor system loading, helping to transfer and discharge points, conveyingl material directly to the belt and also helping to reduce leakage.Our polyurethane conveyor skirts are not only to reduce spillage, but also to reduce dust emissions and reduce belt damage.


Feature of Conveyor Belt Skirting

Our Conveyor belt skirting with extremely tough abrasion resistance, chemical resistance, tear resistance, cut resistance and impactl resistance, polyurethane conveyor belt skirts have an average life of 3-5 times that of equivalent rubber skirts.
They are ideal as a sideI skirt on conveyor belt systems to prevent the materials from falling down.


Conveyor Belt Skirting Application

Urethane conveyor skirting is widely used in mining, foundries, aggregates and all light duty industries.

Technical Date of Urethane Conveyor Belt Skirting

Description Urethane Conveyor belt skirting
Material 100%Polyurethane (PU)-TDI-Polyester
Thickness range (mm) 2-30mm,Common thickness 10,12,16mm
Width Range (mm) 10-600mm,Common Width 75,100,125,150,200,250,300mm,
Maximum width can reach 600mm,
Roll Length (m) 15 Mtr/roll or 30Mtr/roll
Hardness (Shore A) 65 shore A~95 shore A
Color Black,Green,Blue,White,Red etc.
Density(g/cm3) 1.25
Tensile Strength (MPa) 40
Elongation at break,% 660
Abrasion Loss,mm3 @10N 40
Angle Tear Strength (DIE C),KN/m 57
Angle Tear Strength (DIE C),KN/m 23
Temperature Range -30~70
Remark Can beproduced with straight edgeor bevel edge 45 or 35
degree asyour request.
