1U Sliding Splicing Pm Fiber Coupler , 1550nm St Fiber Coupler With Cable Guide
1U Sliding Splicing Pm Fiber Coupler , 1550nm St Fiber Coupler With Cable Guide
Specifications
Brand Name :
J&K
Model Number :
Splicing Fiber Optic Termination Patch Panel
Certification :
IS09001-2008.ROHS
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
3~5days
Packaging Details :
Carton Box
Type :
Optical Fiber Distribution Box
Coupling Ratio: :
20%:80%
Connector Type :
FC/UPC
Wavelength: :
1550NM
Application :
Optical Frame
Fiber Type :
SMF-28e+
Description

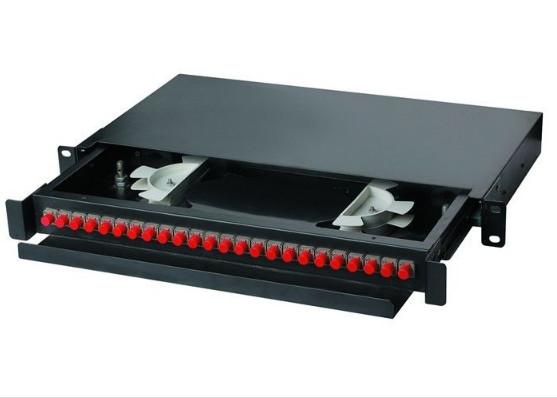

1U Sliding Splicing Fiber Optic Termination Patch Panel With Cable guide

Features

  • Low excess loss
  • low PDL
  • High reliability


Applications

  • Telecommunication system Low excess loss
  • Line monitor system Low PDL
  • Access network High reliability
  • OCT system
  • Amplifier
  • CATV


Specifications

Operating
Wavelength(nm)		 820±40/980±40/
1310±40/1550±40		 980&1550±40/
1310&1490&1550±40		 Parameter Unit Value
Coupling
Ratio (%)		 Insertion Loss (dB) Fiber Type / Hi 780/ Flex 1060/
SMF-28e/ SMF-28e XB
Tap Signal Tap Signal
01/99 19.0-21.0 ≤0.20 18.5-21.5 ≤0.25 PDL dB Typ.:<0.1 Max.:<0.15
03/97 14.6-16.2 ≤0.30 14.5-16.5 ≤0.30 Directivity dB >55
05/95 12.4-13.8 ≤0.35 12.0-14.5 ≤0.45 Return Loss dB >50
10/90 9.70---10.7 ≤0.60 9.70-11.2 ≤0.60 Excess Loss dB Typ.:<0.1 Max.:<0.2
20/80 6.70---7.60 ≤1.15 6.60---7.80 ≤1.15 Pigtail Dia. mm 0.25 /0.9 / 2 / 3
33/67 4.65---5.65 ≤1.70 4.50---5.85 ≤1.80 Pigtail Length cm >100
40/60 3.95---4.30 ≤2.50 3.70---4.70 ≤2.70 Operating Tem. ºC -10~ +70
50/50 2.85---3.30 2.80---3.40 Storage Tem. ºC -40~ +85

1U Sliding Splicing Pm Fiber Coupler , 1550nm St Fiber Coupler With Cable Guide
