Universal Mechanical Splice 60s Operation Time For Communication System
Universal Mechanical Splice 60s Operation Time For Communication System
Universal Mechanical Splice 60s Operation Time For Communication System
Universal Mechanical Splice 60s Operation Time For Communication System
Specifications
Brand Name :
J&K
Certification :
Rohs
Place of Origin :
SHENZHEN,CHINA
MOQ :
500PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
3~5days
Packaging Details :
PE bag
Fiber Mode: :
SM&MM
Fasterning Strength Of Naked Fiber Holder: :
>8N
Operation Time: :
About 60s
Average Insert Loss: :
<=0.2dB(1310nm & 1550nm)
Return Loss :
<--40dB
Fasterning Strength Of Naked Fiber: :
>5N
Description

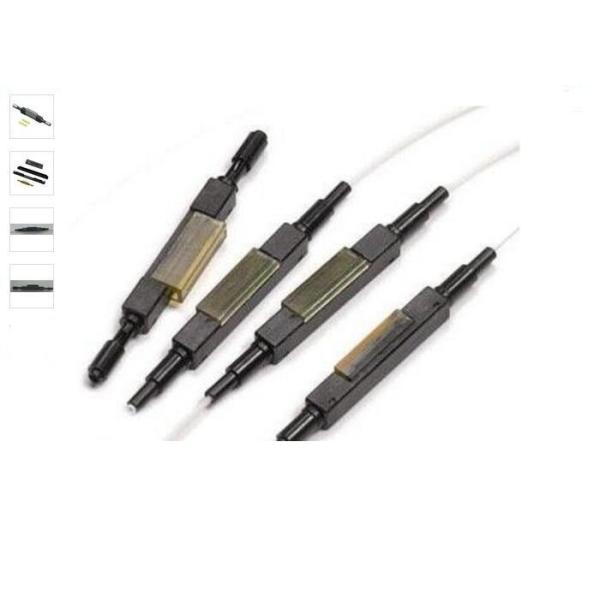

Universal Fiber Optical Mechanical Splicer For Bare Fiber Or FTTH Drop Cable

Fiber Optical Mechanical Splicer is used to connect single fiber and multiple fibers with the simple tooling and clamp.

1. Features:

Easily and rapidly operate with firm and reliable performance.

High reliability and low costs.

Good repeatability.

Excellent heat endurance.

Lower insert loss and higher return loss.

Long service time.

2. Application:

Apply to various single mode and multi-mode connection (diameter:0.25 to 0.25;0.9 to 0.9; 0.25 to 0.9). It can be used for LAN, FTTH, damaged lines repair and optical communication system.

3. Technical Parameters:

Item Parameters
Average insertion loss ≤0.2dB
Return loss ≥50dB
Insertion times 50times
Operating time 30s
Tensile strength ≥500g

4. Environmental Parameters:

Item Parameters
IL change under circulatory testing as temperature change <0.05dB@-40℃~+80℃
Operating temperature -40℃~+80℃
IL change under vibration ≤0.05 dB
IL change when immersing it in the water ≤0.1 dB
Service life ≥35years

Universal Mechanical Splice 60s Operation Time For Communication System
