Durable Mechanical Splice 125um Diameter For FTTH Bare Cable / Indoor Cable
Durable Mechanical Splice 125um Diameter For FTTH Bare Cable / Indoor Cable
Durable Mechanical Splice 125um Diameter For FTTH Bare Cable / Indoor Cable
Durable Mechanical Splice 125um Diameter For FTTH Bare Cable / Indoor Cable
Durable Mechanical Splice 125um Diameter For FTTH Bare Cable / Indoor Cable
Durable Mechanical Splice 125um Diameter For FTTH Bare Cable / Indoor Cable
Specifications
Brand Name :
J&K
Certification :
ISO9001:2008, Rohs
Place of Origin :
SHENZHEN,CHINA
MOQ :
500PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
3~5days
Packaging Details :
PE bag
Applicable For: :
Drop Cable; Indoor Cable(0.9/2.0/3.0mm)
Optical Fiber Diameter: :
125um(G652D & G657A)
Fiber Mode: :
Single & Multi Mode
Average Insert Loss: :
<= 0.2dB(1310nm & 1550nm)
Return Loss: :
<= -40dB
Fastening Strength Of Named Fiber: :
> 5N
Description
Durable Fiber Optic Mechanical Splice 125um For FTTH Bare Cable / Indoor Cable

1. Fiber Optic Mechnaical Splicer Features:

1. Based on unique box-building crimping technology.
2. Precision metallic alloy components with co-axial self centering, excellent and durable optical property.
3. Axially firm fitting of optical fibers, reducing any performance degradation due to loss in the matching gel.
4. Uninterrupted fitting and connecting technology, hence signals are free of impact from external force.
5. The naked fiber, tight buffer and cable, etc., can fully meet the environmental requirements from the terminals customer
6. Integrated protection of the casing to withstand harsh outdoor environment.
7. High success rate and easiness in installation with average splicing time of 150 sec;
8. Applicable for FTTx optical fiber splicing and for repairing any damaged lines to realize firm and reliable splicing of fibers.

2. Fiber Optic Mechnaical Splicer Applications:

Apply to various single mode and multi-mode connection (diameter:0.25 to 0.25;0.9 to 0.9; 0.25 to 0.9). It can be used for LAN, FTTH, damaged lines repair and optical communication system

3. Fiber Optic Mechnaical Splicer Specifications:

ITEM Technical Parameters
Applicable for φ0.25 mm &φ0.90 mm Fiber
Optical fiber diameter 125μm ( 652 & 657 )
Tight buffer diameter 250μm
Fiber mode Single & multi mode
Operation time About 60s( no fiber cut )
Insert loss ≤ 0.1dB(1310nm & 1550nm)
Return loss ≤ -40dB
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Tensile strength >90 N
Using temperature -40~+75°C
Repeatability(10 times) IL ≤ 0.2dB RL ≤ 5dB

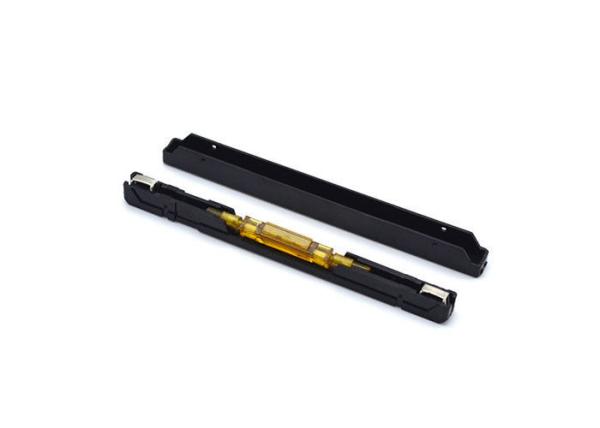

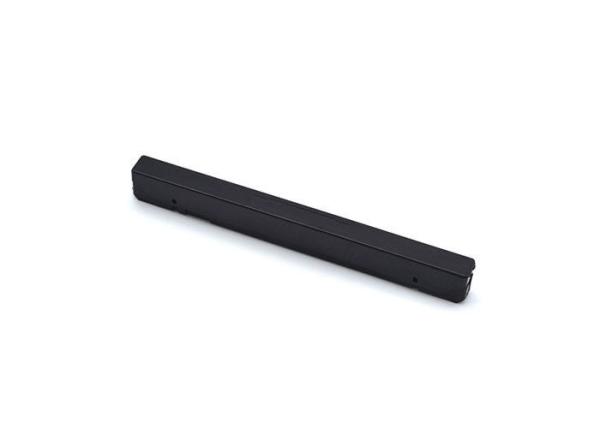

4. Fiber Optic Mechnaical Splicer Product Show:

Durable Mechanical Splice 125um Diameter For FTTH Bare Cable / Indoor CableDurable Mechanical Splice 125um Diameter For FTTH Bare Cable / Indoor CableDurable Mechanical Splice 125um Diameter For FTTH Bare Cable / Indoor Cable
