Indoor Bare Fiber Optic Splicing , Heat Endurance Reliable Fiber Cable Splicing For FTTH
Indoor Bare Fiber Optic Splicing , Heat Endurance Reliable Fiber Cable Splicing For FTTH
Indoor Bare Fiber Optic Splicing , Heat Endurance Reliable Fiber Cable Splicing For FTTH
Indoor Bare Fiber Optic Splicing , Heat Endurance Reliable Fiber Cable Splicing For FTTH
Specifications
Brand Name :
J&K
Certification :
Rohs
Place of Origin :
SHENZHEN,CHINA
MOQ :
500PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
3~5days
Packaging Details :
PE bag
Fiber Mode: :
SM&MM
Fasterning Strength Of Naked Fiber Holder: :
>8N
Using Temperature: :
-40 +75
Average Insert Loss: :
<=0.2dB(1310nm & 1550nm)
Return Loss: :
<--40dB
Repeatability(10 Times): :
IL<=0.2dB RL<=5dB
Description

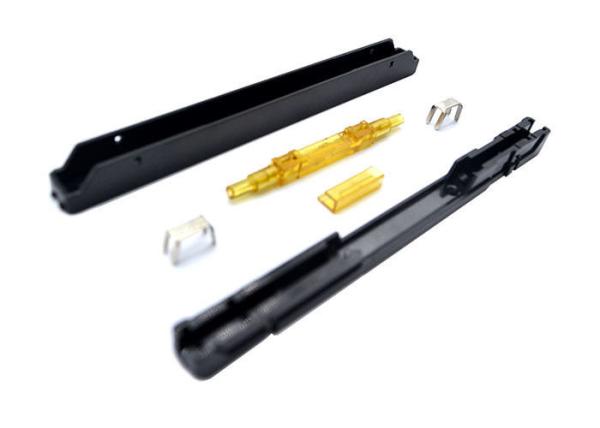

Indoor Bare Fiber Optic Mechanical Splice Universal Fiber Mechanical Splice For FTTH

Fiber Optical Mechanical Splicer is used to connect single fiber and multiple fibers with the simple tooling and clamp.
1. Features:

Easily and rapidly operate with firm and reliable performance.
High reliability and low costs.
Good repeatability.
Excellent heat endurance.
Lower insert loss and higher return loss.
Long service time.
2. Application:
Apply to various single mode and multi-mode connection (diameter:0.25 to 0.25;0.9 to 0.9; 0.25 to 0.9). It can be used for LAN, FTTH, damaged lines repair and optical communication system.
3. Technical Parameters:

ITEMTechnical Parameters
Applicable for0.25 mm &0.90 mm Fiber
Optical fiber diameter125μm ( 652 & 657 )
Tight buffer diameter250μm
Fiber modeSingle and multi mode
Operation timeAbout 10s( no fiber cut )
Insert loss≤ 0.1dB(1310nm & 1550nm)
Return loss≤ -40dB
Fastening strength of naked fiber>5 N
Fastening strength of naked fiber holder>8 N
Tensile strength>90 N
Using temperature-40~+75°C
Repeatability(10 times)IL ≤ 0.2dB RL ≤ 5dB

4. Environmental Parameters:

ItemParameters
IL change under circulatory testing as temperature change<0.05dB@-40℃~+80℃
Operating temperature-40℃~+80℃
IL change under vibration≤0.05 dB
IL change when immersing it in the water≤0.1 dB
Service life≥35years
