1 U Rackmount Fiber Mux Demux , 18 Channels Digital Demultiplexer For Backbone Network
1 U Rackmount Fiber Mux Demux , 18 Channels Digital Demultiplexer For Backbone Network
Specifications
Brand Name :
J&K
Model Number :
DWDM
Certification :
UL; SGS; ROHS
Place of Origin :
SHENZHEN,CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
3~5days
Packaging Details :
Carton Box
Product name :
MUX/DEMUX
Opterating temperature (℃) :
-20~85℃
Storage temperature :
-40 ~85°C
Application :
FTTH FTTB FTTX Network
Directivity (dB) :
≥50
Return Loss (dB) :
≥45
Description

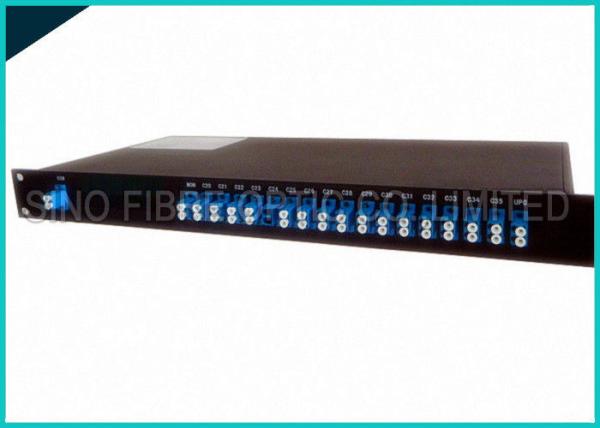

18Ch 100G DWDM MUX/DEMUX 1U Rack Mount With LC/UPC Connectors

18Ch DWDM MUX/DEMUX 1U Rack Mount also call 1U Chassis,it's used to transmit over dual fiber bi-directionally,conform to ITU 100Ghz Grid.

This 1U Rack has accurate wavelength center,0.1nm even 0.05nm.

Applications:

  • WDM-PON
  • Backbone Network
  • CATV
  • Datacenter
  • DWDM System

Features:

  • 100GHz ITU Channel Spacing
  • Broadband transmission
  • Low insertion loss
  • High channel isolation
  • High Central Wavelength Accuracy
  • High stability and reliability
  • Epoxy-free optical path

Specifications:

 Mux Demux
Channel Wavelength (nm) 1530.33~1560.61(21~59 ITU grid)
Central Wavelength Accuracy (nm) ± 0.1
Min Channel Spacing (GHz) ITU 100Ghz Grid
Passband (@-0.5dB bandwidth)(nm) >0.22
Insertion Loss(dB) Add/Drop Ch. ≤4.5
Reflective Ch. ≤0.4
Passband Flatness(dB) ≤0.3
Add/Drop channel Isolation(dB) Adjacent Channel N/A ≥25
Non-adjacent Channel N/A ≥35
Reflective Isolation(dB) ≥12
Insertion Loss Temperature (dB/°C ) ≤0.003
Wavelength Temperature Shifting (nm/ °C ) ≤0.002
PDL (dB) ≤0.1
PMD (ps) ≤0.1
Directivity (dB) ≥50
Return Loss (dB) ≥45
Rated power (mW) 500
Operation Temperature (°C) -20 ~ +85
Storage Temperature (°C) -40 ~ +85
Dimension (mm) Standard 1U Rack Mount
