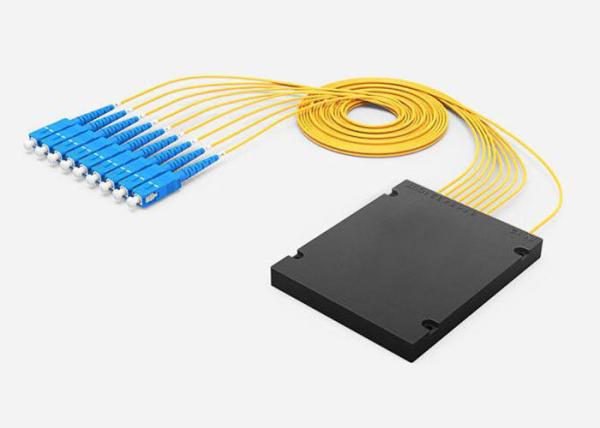

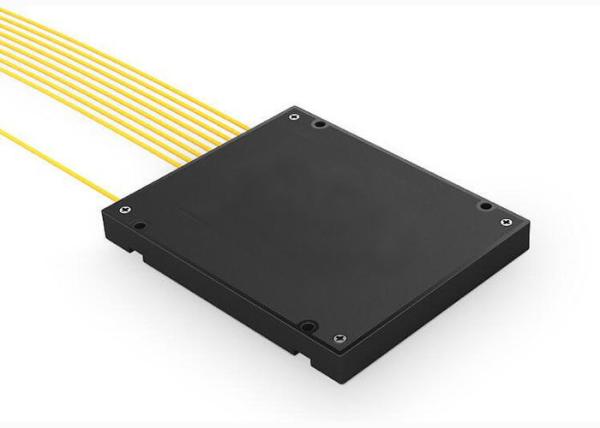

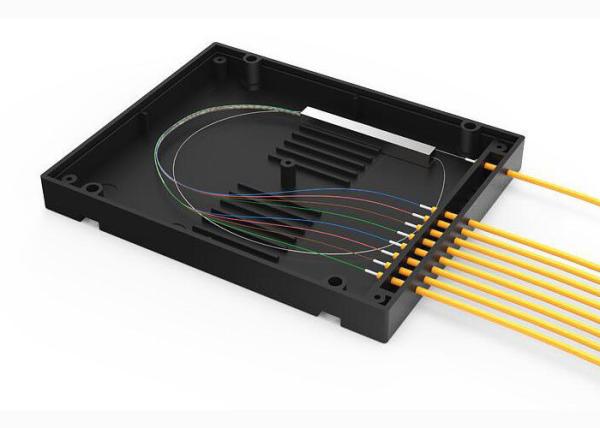

Low Insertion Loss Optical Cable Splitter , Low PDL 1x8 PLC Splitter ABS Tube 2.0mm 1M Cable
Low Insertion Loss Optical Cable Splitter , Low PDL 1x8 PLC Splitter ABS Tube 2.0mm 1M Cable
Low Insertion Loss Optical Cable Splitter , Low PDL 1x8 PLC Splitter ABS Tube 2.0mm 1M Cable
Low Insertion Loss Optical Cable Splitter , Low PDL 1x8 PLC Splitter ABS Tube 2.0mm 1M Cable
Low Insertion Loss Optical Cable Splitter , Low PDL 1x8 PLC Splitter ABS Tube 2.0mm 1M Cable
Low Insertion Loss Optical Cable Splitter , Low PDL 1x8 PLC Splitter ABS Tube 2.0mm 1M Cable
Specifications
Brand Name :
J&K
Certification :
ISO9001:2015, SGS, ROSH
Place of Origin :
SHENZHEN,CHINA
MOQ :
20PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
3~5days
Packaging Details :
plastic box
Product name :
Fiber Optic PLC Splitter
Application :
FTTH FTTB FTTX PON CATV
Fiber type :
G657
Operating temperature :
-20~+70℃
Wavelength :
1310nm/1550nm
Directivity :
≥60dB
Description
Low insertion loss, low PDL 1 × 8 PLC ABS tube, 2.0mm, 1M cable, Fiber Optic Splitter

ABS package, 3.0mm, 1M cable, SC/PC connector

Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.

Features:
Various coupling ratio
Single mode and multi mode available
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration available

Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting

Specification:

Parameter Configuration
N x 4(N=1, 2, 16) N x 8 (N=1, 2, 8) N x 16 (N=1, 2, 16) N x 32 (N=1, 2, 32)
Operate Wavelength(nm) 1310/1550, or customized
Bandwidth(nm) ±20
Max.Excess Loss(dB) 0.2 0.3 0.4 0.5
Typ.Insertion Loss(dB) 6.2 9.3 12.4 15.5
Max.Insertion Loss(dB) 6.8 10.2 13.6 17
Uniformity(dB) 1.2 1.8 2.4 3
PDL(dB) 0.08 0.12 0.16 0.2
Thermal Stability(dB) 0.2 0.3 0.4 0.5
Directivity(dB) ≥60
Operate Temperature(℃) -20～+70
Lead Length(m) 1 or customized
Lead Type(mm) φ3.0, φ2.0, φ0.9
Package Dimension A:φ3.0, L=50 B:89*19*8 C:99*79*9 D:140*114*18

(mm, L*W*H)

Low Insertion Loss Optical Cable Splitter , Low PDL 1x8 PLC Splitter ABS Tube 2.0mm 1M Cable
